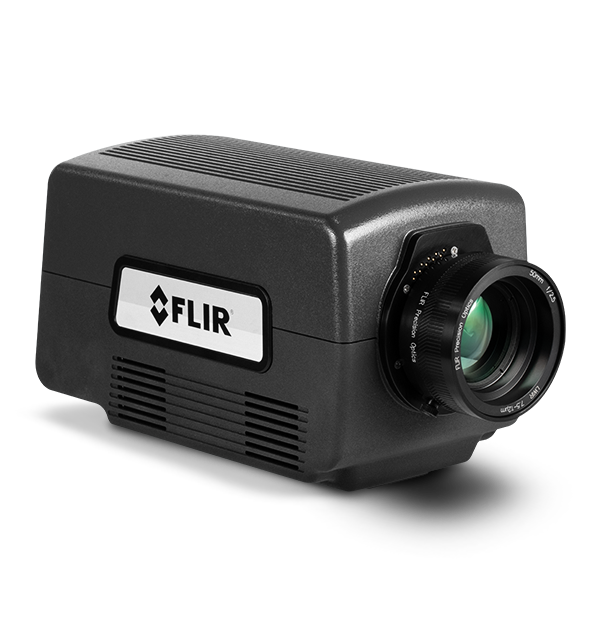

FLIR A8580 SLS
Compact LWIR HD Thermal Camera
FLIR A8580 LWIR SLS cameras provide the crisp imagery, accurate temperature measurement, and streamlined analysis features needed for industrial, military, and manufacturing R&D applications. Thanks to the 1.3 MP Strained Layer Superlattice (SLS) detector and the suite of manual and remote focus lenses, users can maximize the number of measurement pixels on their target. Simple, single cable connectivity using Gigabit Ethernet or CoaXPress provides complete camera control plus data capturing in FLIR Research Studio software, so users can analyze and understand data faster than ever before.
Feature-rich and easy to use
Offers remote triggering, synchronization capabilities, and compatibility with a wide range of manual and remote focus lenses, including microscope lenses
HD resolution, ±2°C accuracy, and a built-in filter wheel for quickly switching to high temperature ranges help ensure you collect accurate, meaningful temperature data
FLIR Research Studio’s simple Connect–View–Record–Analyze workflow helps you collect and analyze data quickly and collaborate with your team easily
사양
| Highlighted | |
|---|---|
| Resolution | 1280 × 1024 |
| Detector Pitch | 12 µm |
| Spectral Range | 7.5 µm (lower), 11.5–12.5 µm (upper) |
| Detector Type | Strained Layer Superlattice (SLS) |
| Camera f_number | f/2.5 |
| Dynamic Range | 14-bit |
| NETD | ≤45 mK (≤40 mK typical) |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to ~45 Hz (GigE), 60 Hz (CXP) |
| Standard Temperature Range [with band matched optics] | -20°C to 350°C (-4°F to 662°F) |
| Optional Temperature Range | 250°C to 2000°C (ND1), 500°C to 3000°C (ND2) |
| Filtering | Internal 4-position motorized filter wheel; factory installed filters |
| Focus | Motorized (compatible w/manual lenses) |
| Imaging & Optical | |
|---|---|
| AGC | Manual, linear, plateau equalization, DDE |
| Ambient Drift Compensation | Yes, with factory calibration |
| Available Lenses | Manual or Motorized (7.5–12.5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Camera f_number | f/2.5 |
| Close_up Lenses_Microscopes | 1x (12 µm/pixel) |
| Detector Pitch | 12 µm |
| Detector Type | Strained Layer Superlattice (SLS) |
| Digital Data Protocol | Gigabit Ethernet (GigE Vision 2.0), CoaXPress |
| Dynamic Range | 14-bit |
| Filtering | Internal 4-position motorized filter wheel; factory installed filters |
| Focus | Motorized (compatible w/manual lenses) |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to ~45 Hz (GigE), 60 Hz (CXP) |
| HD Video | SDI |
| Image Time Stamp | Yes |
| Lens Interface | FLIR FPO-M (4-tab bayonet, motorized) |
| Minimum Integration Time | 480 ns to ~full frame |
| NETD | ≤45 mK (≤40 mK typical) |
| Operability | ≥98% (≥99% typical) |
| Palette | Selectable 8-bit |
| Pixel Clock | 100 MHz |
| Readout | Snapshot |
| Readout Modes | Asynchronous integrate while read Asynchronous integrate then read |
| Resolution | 1280 × 1024 |
| Spectral Range | 7.5 µm (lower), 11.5–12.5 µm (upper) |
| Subwindow Modes | Flexible windowing down to 32 × 4 (steps of 32 columns, 4 rows) |
| Video Modes | SDI: 720p@50/59.9, 1080p@25/29.9 |
| Zoom | Automatic, variable |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±1°C typical) below 100°C, ±2% of reading (±1% typical) above 100°C |
| Optional Temperature Range | 250°C to 2000°C (ND1), 500°C to 3000°C (ND2) |
| Standard Temperature Range [with band matched optics] | -20°C to 350°C (-4°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GenICam (GigE, CXP), RS-232 |
| Synchronization Modes | Sync In, Sync Out |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 226 × 117 × 135 mm (8.9 × 4.6 × 5.3 in) |
| Weight [without lens] | 3.4 kg (8.5 lbs) |
| Power | |
|---|---|
| Power | 24 VDC (<50 W steady state) |
| Environmental & Certifications | |
|---|---|
| Mounting | 2x ¼"–20 tapped holes, 1x ⅜"–16 tapped hole, 4x 10-24 tapped holes |
Accessories
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
- FLIR A858x + A678x Camera Filter Holder, Behind The Lens, 1" Diameter, 4-tab FPO Motorized Bayonet (4229763)
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
