Discontinued

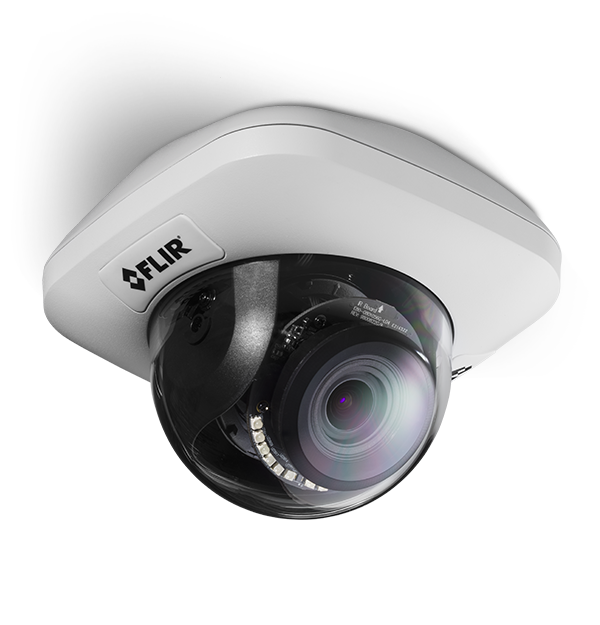

Ariel 4K UHD Mini-Dome
The Ariel 4K UHD Dome easily handles diverse motion and lighting conditions found in critical infrastructure and commercial locations. The camera includes Shutter Wide Dynamic Range, IR Illumination and H.264/H.265 compression. The Ariel 4K UHD Dome reduces the total cost of ownership through network and storage savings. When controlled using FLIR’s United VMS, the camera also utilizes unique adaptive streaming technology, enhancing the overall viewing experience.
The highest quality video at the lowest bandwidth.
Features include 4K UHD resolution, Shutter Wide Dynamic Range, and H.264/H.265 compression.
Camera sensitivity equals 0.07 Lux (color), 0.01 Lux (BW), and 0 Lux with IR illumination.
The camera offers tamper detection and multi-zone video motion detection.
사양
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM |
| MTBF [hrs] | 346896.0 |
| USA | UL/cUL 60950-1, FCC47 CFR Part 15 subpart B / ICES-003 |
| Cyber Security | |
|---|---|
| Security | User account with password protection and IP filter |
| Environmental | |
|---|---|
| Humidity | 90% (non-condensing) |
| Operating Temperature | -40°C to 50°C (-40°F to 122°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| General | |
|---|---|
| AES | 1/1.75 to 1/10,000 (auto) |
| Bubble F_Stop | F0.0 - clear bubble |
| Bubble Rating | IK10 vandal resistant polycarbonate |
| Day_Night Mode | Yes, support for Enhanced Low Light Performance |
| Dimensions | 138 × 104 mm (5.43 x 4.09 in.) |
| Enclosure | Indoor/Outdoor: IK7 rated vandal IP67 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 802.3af PoE |
| Power Connection | PoE / RJ45 |
| Power Consumption | 8W / 12W with heater and IR |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | On / Off |
| Tamper Detection | Yes |
| Unit Weight | 0.82kg (1.8 lbs.) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Auto |
| PTZ | |
|---|---|
| Pan_Tilt | 360° / ±88° |
| System Integration | |
|---|---|
| Alarm In | 1 dry alarm contact |
| Alarm Output | 1 Relay Contact |
| Angle of Illumination | Full 60° |
| Bi_directional Audio | 1 Audio Line Input, G.711 a/µ-law, AAC support + 1 Audio Line Output |
| Ethernet | 10/100, IEEE 802.3, auto sensing 1 x RJ45 |
| IR Distance | up to 30m (98 ft.) |
| LED Type | high efficiency SMD |
| Network Protocol | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Peak Emission Wavelength [nm] | 850.0 |
| Remote Configuration | via web browser or supported video management software |
| Supported Web Browser | Internet Explorer 10+, Firefox 50+, Chrome 55+ |
| Thermal Camera | |
|---|---|
| DSS | 1/7.5(6.25)~1/60(50) NTSC(PAL) |
| Image Sensor | 1/2.9" BSI CMOS |
| Visible Camera | |
|---|---|
| Backlight Compensation | On / Off |
| DSS | 1/7.5(6.25)~1/60(50) NTSC(PAL) |
| Image Sensor | 1/2.9" BSI CMOS |
| Lens Type | Varifocal 3.4-9mm, 42°-104° HFOV, F1.5, D/N, motorized auto-focus / auto-iris, P-Iris lens |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D |
| Sensitivity | 0.07 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Sensor Resolution | 3840 x 2160 |
| Signal to Noise Ratio | ±50 dB |
| White Balance | Auto / ATW / Manual / One Push |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264/H.265 30/25 FPS @ 4K (NTSC/PAL) or H.264/H.265 15/12 FPS @ 4K + 1080P + D1 (NTSC/PAL) or H.264/H.265 60/50 FPS @ 1080P + 30/25 FPS @ 720P + D1 (NTSC/PAL) |
| Rate Control | CBR, CVBR, VBR, MJPEG |
| Resolution Range | Scalable from D1 to 4K |
| SD Card Recording1 | microSDXC up to 128GB (Class 10) |
| Video Bandwidth | Configurable between 64Kbps and 20Mbps |
| Video Compression | Enhanced H.265 Main Profile + Enhanced H.264 Main/High/Baseline Profile + MJPEG |
| Video Motion Detection | Yes |
