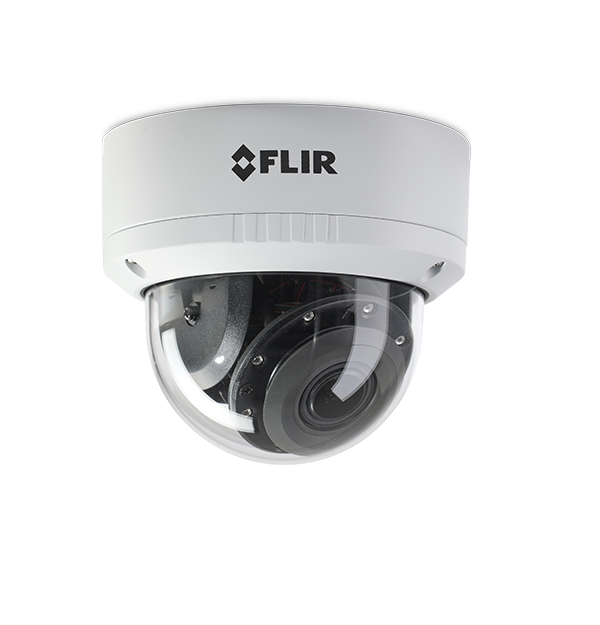

Ariel™ CM-3508-11-I
4K Mini-Dome Camera with Video Analytics
The Ariel 4K Mini-Dome easily handles diverse motion and lighting conditions found in critical infrastructure and commercial locations. The camera includes Shutter Wide Dynamic Range, IR Illumination and H.265 compression for superior low-light performance and sharp video in complex environments such as critical infrastructure and large campuses. The simplified web interface and cybersecurity improvements help deliver predictable, efficient streaming and storage that reduce utility costs and total cost of ownership. When controlled using Flir’s United VMS, the camera also utilizes unique adaptive streaming technology, enhancing the overall viewing experience.
The Ariel CM-3508-11-I provides high-resolution, 4K imaging with shutter WDR for superior performance in low light environments.
Built-in motion processing architecture and video analytics ensure reliable intrusion detection in complex environments.
Simplified web interface and cybersecurity improvements keep your facility safe, while efficient streaming and storage reduce utility costs and total cost of ownership.
사양
| Compliance & Certifications | |
|---|---|
| ONVIF | ONVIF Profile G / T / S/ M |
| Cyber Security | |
|---|---|
| AI Video Analytics | • Basic: line and area, human/vehicle • Object counting • Line crossing • Zone object counting • Intrusion detection • Loitering detection |
| General | |
|---|---|
| AES | 1/3~1/32000 |
| Day/Night Mode | Yes; light sensor switch |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Memory | 1 GB DDR3 |
| Privacy Zones | Yes |
| Processor | InnoFusion C5-36GW |
| Scanning Mode | Progressive |
| Shutter WDR | 100 dB |
| Tamper Detection | Yes |
| System Integration | |
|---|---|
| Angle of Illumination | 140° |
| Distance | Up to 30 m (98 ft) |
| Ethernet | 10/100 Mbps Ethernet, RJ45 x 1 |
| LED Type | High efficiency SMD |
| Peak Emission Wavelength [nm] | 850.0 |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Firefox, Chrome, Edge |
| Thermal Camera | |
|---|---|
| AGC | Yes |
| DSS | 1/3~1/30 (NTSC); 1/3~1/25 (PAL) |
| Focus | Push AF/Manual |
| Image Sensor | CMOS 1/1.8", Sony IMX334 |
| Sensitivity | Color 0.15 lux, 0 lux (with IR illuminator ON) B/W 0.01 |
| Visible Camera | |
|---|---|
| AGC | Yes |
| Backlight Compensation | ON/OFF |
| DSS | 1/3~1/30 (NTSC); 1/3~1/25 (PAL) |
| Focus | Push AF/Manual |
| Image Sensor | CMOS 1/1.8", Sony IMX334 |
| Lens Type | Varifocal 4–10 mm, 110.4° ~45° HFOV, F/1.6, D/N, motorized, P-Iris |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | Yes |
| Sensitivity | Color 0.15 lux, 0 lux (with IR illuminator ON) B/W 0.01 |
| Sensor Resolution | 3840 × 2160 |
| Signal to Noise Ratio | 50 dB |
| White Balance | Auto/Manual |
| Video & Recording | |
|---|---|
| Maximum Performance | Up to 30 fps 8 MP (H.265/H.264) + 30 fps 1080p (H.265/H.264) + 30 fps 360p (MJPEG) |
| Rate Control | CBR, CVBR (H.265/H.264) |
| Resolution Range | 3840 × 2160 to 640 × 360 |
| SD Card Recording | microSDXC up to 1 TB (Card not included. Refer to list of compatible SD cards; up to 1 TB) |
| Video Bandwidth | 500 K–12000 K |
| Video Compression | H.265 / H.264 / MJPEG; dynamic GOP |
| Video Motion Detection | Yes |
