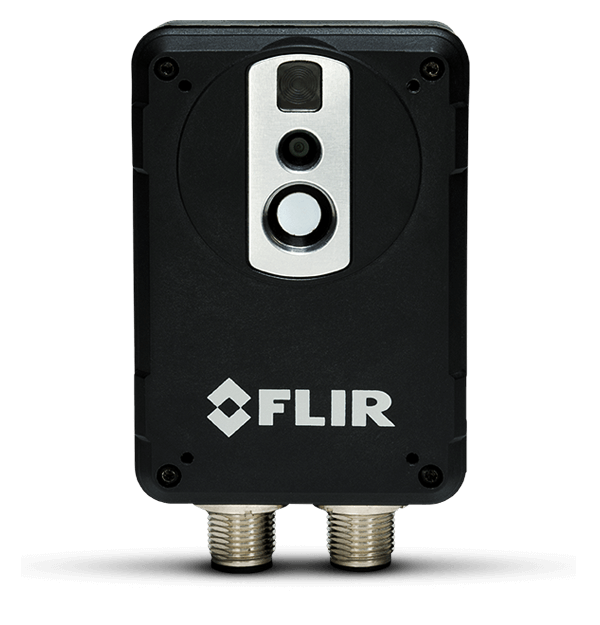

FLIR AX8 combines thermal imaging with a visual cameras in one small, affordable package for continuous temperature monitoring and alarming. The AX8 helps you guard against unplanned outages, service interruptions, and failure of electrical or mechanical equipment. Compact and easy to install, the AX8 provides continuous monitoring of electrical cabinets, process and manufacturing areas, data centers, energy generation and distribution, transportation and mass transit, storage facilities and refrigeration warehouses.
Temperature Monitoring You Can See
Streaming video output means the AX8 can provide live video of every installation plus automated alarming.
Ethernet/IP and Modbus TCP compliant so analysis and alarm results can be easily shared to a PLC.
The AX8 measures only 54 x 25 x 95 mm, making it easy to install in space constrained areas for uninterrupted condition monitoring.
Specifications
| Highlighted | |
|---|---|
| Ethernet Video Streaming | Yes (unauthenticated) |
| EMC | EN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission) |
| Thermal Sensitivity_NETD | < 0.10°C @ +30°C (+86°F) / 100 mK |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading (+10 to +100°C at +10 to +35°C ambient) |
| Alarm Functions | Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set |
| Alarm Output | Digital Out, store image, file sending (ftp), email (SMTP), notification |
| Communication & Data Storage | |
|---|---|
| Ethernet | Control, result and image |
| Ethernet Connector Type | M12 8-pin FLIR X-Coded (Adapter needed to standard X-Coded Part # T129886ACC) |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 0. |
| Ethernet Protocols | Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour) |
| Ethernet Standard | IEEE 802.3 |
| Ethernet Type | 100 Mbps |
| Ethernet Video Streaming | Yes (unauthenticated) |
| File Formats | JPEG+FFF |
| Image Storage Mode | IR, visual, MSX |
| Storage Media | Built-in memory for image storage |
| Imaging & Optical | |
|---|---|
| Automatic Image Adjustment | Continuous |
| Built_in Digital Camera | 640 × 480 |
| Color palettes | Color palettes (BW, BW inv, Iron, Rain) |
| Detector Type | Focal Plane Array (FPA), uncooled microbolometer |
| Digital Camera FOV | Adapts to the IR lens |
| Field of view [FOV] | 48° × 37° |
| Focus | Fixed |
| Image Modes | Thermal, Visual, MSX (IR-image with enhanced detail presentation) |
| Image Streaming Formats | Motion JPEG, MPEG, H.264 |
| Image Streaming Resolution | 640 × 480 |
| IR Resolution | 80 × 60 pixels |
| Screen EST Mode | No |
| Sensitivity | Minimum 10 Lux without illuminator |
| Spectral Range | 7.5–13 µm |
| Thermal Sensitivity_NETD | < 0.10°C @ +30°C (+86°F) / 100 mK |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading (+10 to +100°C at +10 to +35°C ambient) |
| Alarm Functions | Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set |
| Alarm Output | Digital Out, store image, file sending (ftp), email (SMTP), notification |
| Area | 6 boxes with max./min./average |
| Atmospheric transmission correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Camera size [L x W x H] | 54 × 25 × 79 mm (2.1 × 1 × 3.1 in.) w/o connectors 54 × 25 × 95 mm (2.1 × 1 × 3.7 in.) w/ connectors |
| Emissivity Correction | Variable from 0.01 to 1.0 |
| External Optics and Windows Correction | Automatic, based on input of optics/window transmission and temperature |
| Measurement Corrections | Global object parameters |
| Measurement Presets | Yes |
| Object Temperature Range | –10°C to +150°C (14°F to 302°F) |
| Optics Transmission Correction | Automatic, based on signals from internal sensors |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| Set_up Commands | Date/time, Temperature °C/°F |
| Spot Meter | Maximum 6 |
| General | |
|---|---|
| Packaging | Infrared camera with lens, printed documentation, user documentation CD-ROM |
| Packaging Size | 210 x 142 x 70 mm (8.27 x 5.59 x 2.76 in.) |
| Environmental & Certifications | |
|---|---|
| Bump | 25 g (IEC 60068-2-29) |
| EMC | EN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission) |
| Encapsulation | IP67 (IEC 60529) |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles |
| Operating Temperature Range | -10°C to +50°C (14°F to +122°F) |
| Storage Temperature Range | –40°C to +70°C (–40°F to +158°F) IEC 68-2-1 and IEC 68-2-2 |
| Vibration | 2 g (IEC 60068-2-6) |
| Power | |
|---|---|
| External Power Connector Type | M12 8-pin A-coded (Shared with digital I/O) |
| External Power Operation | 12/24VDC, 2 W continuously/ 3.1 W absolute max |
| Voltage Allowed Range | 10.8–30VDC |
| User Interface | |
|---|---|
| Web interface | Yes |
Accessories
- Cable M12 to Pigtail, 10 m (T129259ACC)
- Cable M12, FLIR X-Coded to Standard X-Coded (T129886ACC)
- Cable M12 to Pigtail, 5 m (T129258ACC)
- Cable, M12 to Pigtail (T128391ACC)
- M12X- RJ45 CABLE 5M (A80352)
- Ethernet Cable M12 to RJ45, 2m (T128390ACC)
- Ethernet Cable M12 to RJ45, 10m (T129257ACC)
- Ethernet Cable M12 to RJ45, 5m (T129256ACC)
