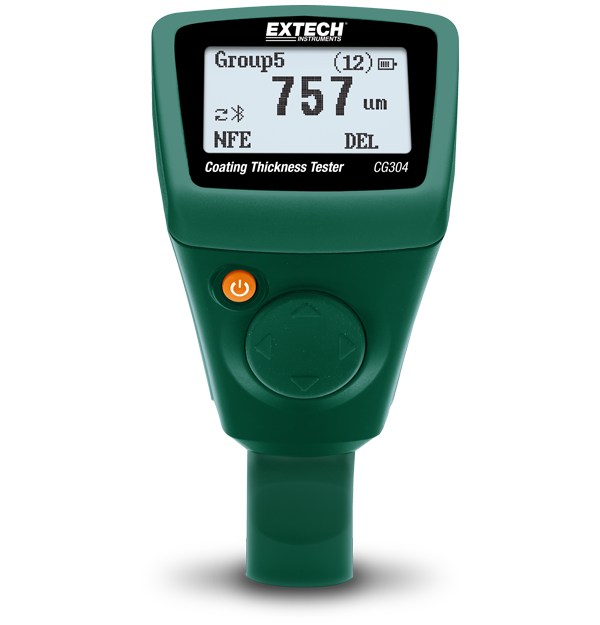

The Extech CG304 Coating Thickness Tester offers a non-destructive way of measuring the thickness of ferrous and non-ferrous substrates with automatic recognition of the material being measured. Memory stores 2500 readings. The unique Bluetooth interface feature wirelessly transmits data to your PC for further analysis and enables you to generate a documented report. Special LCD with backlight feature and contrast for easy viewing in various lighting conditions. Complete with two AAA batteries, software, hard case, steel and aluminum substrates, and standard films for calibration.
사양
| General | |
|---|---|
| Coating Thickness (Ferrous) | 0 to 2000µm; 0 to 78.7mils |
| Coating Thickness (Ferrous) Basic Accuracy | ±(2%+2µm); ±3.5% (1000 to 2000µm) |
| Coating Thickness (Ferrous) Max Resolution | 0.1µm (0.01mils) |
| Coating Thickness (Non-Ferrous) | 0 to 2000µm; 0 to 78.7mils |
| Coating Thickness (Non-Ferrous) Basic Accuracy | ±(2%+2µm); ±3.5% (1000 to 2000µm) |
| Coating Thickness (Non-Ferrous) Max Resolution | 0.1µm (0.01mils) |
| Min Curvature Radius (Ferrous) | 1.5mm (59.06mils) |
| Min Curvature Radius (Non-Ferrous) | 3mm (118.1mils) |
| Min Diameter (Ferrous) | 7mm (275.6mils) |
| Min Diameter (Non-Ferrous) | 5mm (196.9mils) |
| Min Thickness (Ferrous) | 0.5mm (19.69mils) |
| Min Thickness (Non-Ferrous) | 0.3mm (11.81mils) |
| Working Principle (Ferrous) | Magnetic Induction |
| Working Principle (Non-Ferrous) | Eddy Current |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.7 × 2.4 × 1.25" (120 × 62 × 32mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 6.17oz (175g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
