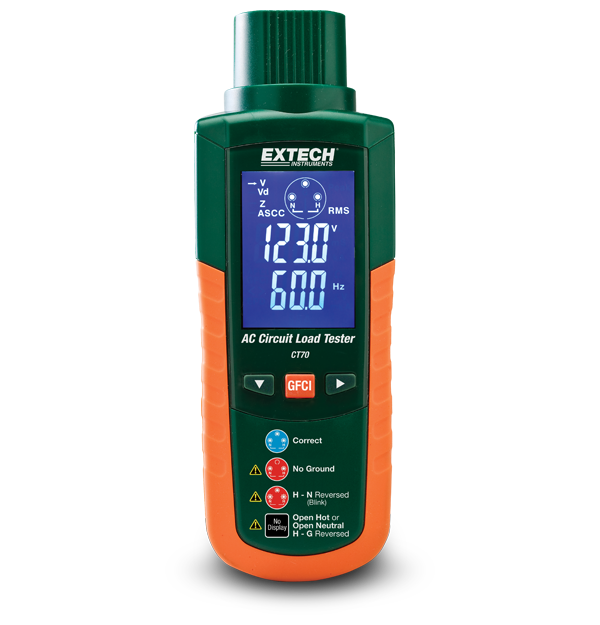

Circuit and wiring issues can introduce shock hazards and compromise performance of machinery and equipment. The CT70 is a GFCI and AC circuit analyzer which covers outlet load handling and outlet tester functions. AC load tester functions cover selectable loads of 12, 15, and 20 Amps; loaded and unloaded AC line voltage measurements; voltage drop/line impedance calculations; and peak line voltage. Outlet tester functions include neutral to ground voltage; hot, neutral, and ground impedance; GFCI trip time/trip current; and open or reversed wiring. The CT70 comes complete with AC test cord (standard North American 3-prong plug).
사양
| General | |
|---|---|
| AC Voltage | 90.0 to 240.0V |
| Frequency | 45.0 to 65.0Hz |
| Peak Line Voltage | 350.0V |
| Voltage Drop | 0.1 to 99.9% |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 8 × 2.8 × 2" (203.2 × 71.1 × 50.8mm) |
| Safety Category | CATII - 300V |
| Warranty | 2 years |
| Weight | 11.2oz (317.5g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
