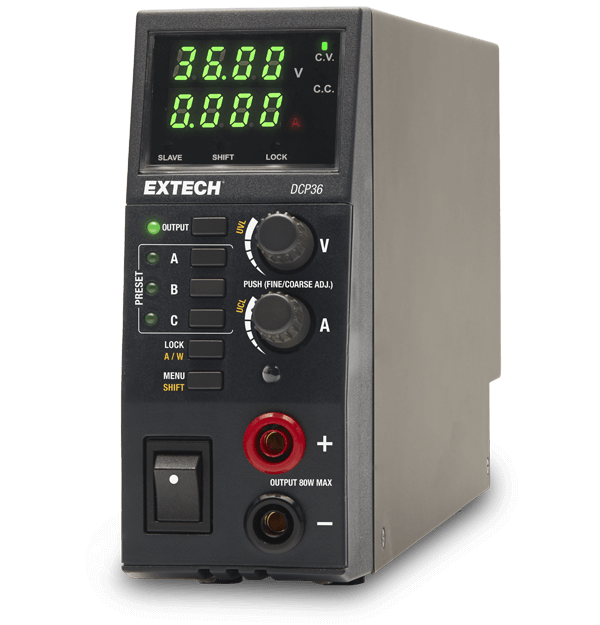

Extech’s DCP36 power supply has 80W constant power topology and has autoranging Voltage and Current output. This compact and lightweight unit provides easy portability, and is ideal for tight workbenches with limited space. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.
사양
| General | |
|---|---|
| Line Current Regulation | ≤10mA |
| Line Voltage Regulation | ≤4mV |
| Load Current Regulation | ≤10mA |
| Load Voltage Regulation | ≤30mV |
| Output Current | 0 to 5A; Autoranging with 80W maximum output power (E x I = ≤80W) |
| Output Current Basic Accuracy | ±(0.5% + 5 counts) |
| Output Voltage | 0.5 to 36V |
| Output Voltage Basic Accuracy | ±(0.5% + 5 counts) |
| Ripple and Noise | ≤35m Vp-p |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 13 × 5 × 2" (330 × 127 × 53.5 mm) |
| Warranty | 2 years |
| Weight | 4.2 lbs (1.9 kg) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
