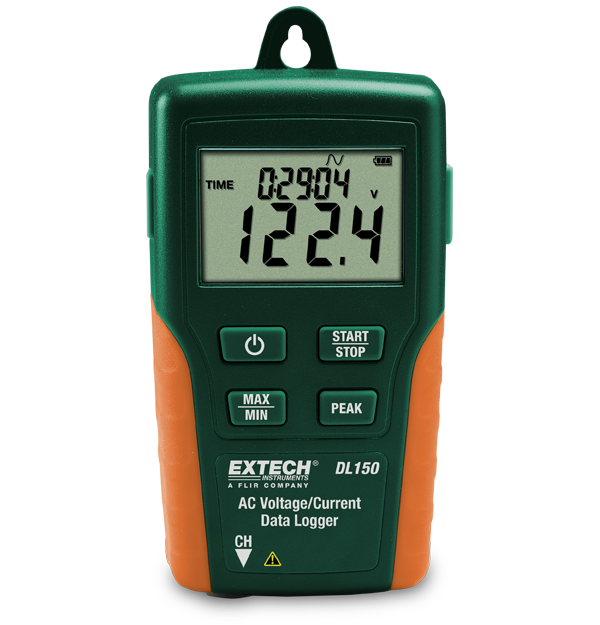

The Extech DL150 is a True RMS AC Voltage and Current Data Logger. Data log up to 100,000 readings of TRMS AC Voltage (600 Volt) or Current (200 Amp) with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, min/max, and if the user settable high/low alarms have been exceeded. Readings can be downloaded to your PC via the USB interface. Featuring normal, peak, and capture (user specified trigger level) recording modes. Complete with current clamp, test leads, alligator clips, software, USB cable, 110-Volt AC Adapter, and four AAA batteries.
사양
| General | |
|---|---|
| AC Current | 10 to 200A |
| AC Current Basic Accuracy | ±(2% of reading ± 1A) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 10 to 600V |
| AC Voltage Basic Accuracy | ±(1.5% of reading ±1V) |
| AC Voltage Max Resolution | 0.1V |
| Memory | 100,000 points |
| PC Interface | USB |
| Sampling Rate | 1 second to 24 hours |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.5 × 2.5 × 1.3" (114 × 63 × 34mm) |
| Power | 4 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 8.7oz (248g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
