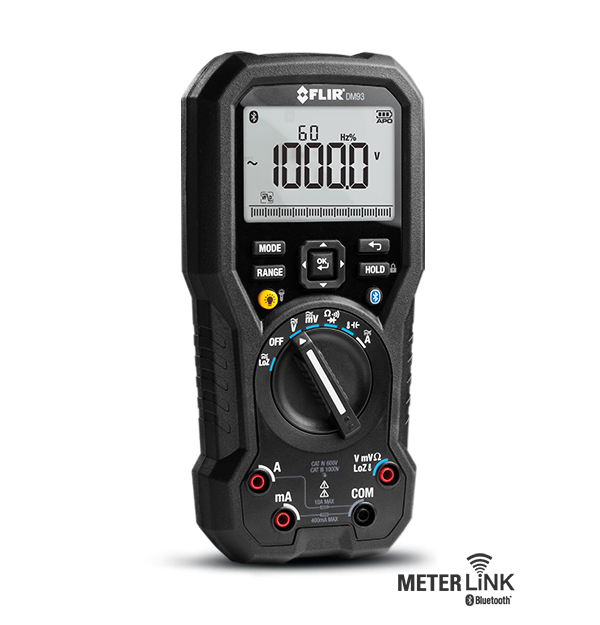

The FLIR DM93 world-class digital multimeter offers advanced variable frequency drive filtering to help you accurately analyze non-traditional sine waves and noisy signals. No matter what electrical challenge you're up against, the DM93's powerful lighting and durable design will make the job simple. The DM93 also features Bluetooth® technology to connect a compatible smartphone for remote viewing and sharing, as well as METERLiNK® technology to wirelessly embed electrical readings into radiometric infrared images on compatible FLIR thermal cameras.
Take the guesswork out of electrical troubleshooting
Provides advanced variable frequency drive filtering and dual display, True RMS voltage and current, and LoZ mode.
Offers LED worklights to eliminate the need for a flashlight, durable construction, a backlit display, and an analog bargraph.
Bluetooth® enables wireless data transfer and METERLiNK® technology embeds data into live and saved thermal images from FLIR thermal cameras.
사양
| Highlighted | |
|---|---|
| Display Counts | 40,000 |
| Safety Category | CAT IV-600V, CAT III-1000V |
| Imaging & Optical | |
|---|---|
| Gallery | 17557 |
| Measurement & Analysis | |
|---|---|
| AC Current | Range 10.000 A / Basic Accuracy ±1.0% |
| AC Voltage | Range 1000.0 V / Basic Accuracy ±0.5% |
| Capacitance | Range 40.00 mF / Basic Accuracy ±0.9% |
| Continuity Threshold | Range 30 Ω / Basic Accuracy ±0.2% |
| DC Current | Range 10.000 A / Basic Accuracy ±0.2% |
| DC Voltage | Range 1000.0 V / Basic Accuracy ±0.5% |
| Diode Test | Range 2 V / Basic Accuracy ±1.5% |
| Display Counts | 40,000 |
| Frequency | Range 100.00 kHz / Basic Accuracy ±5 Digits |
| Resistance | Range 40.00 MΩ / Basic Accuracy ±0.2% |
| Temperature | Range -328 to 2192°F, -200 to 1200°C / Basic Accuracy ±1.0% |
| VFD Voltage | Range 1000.0 V / Basic Accuracy ±0.5% |
| Communication & Data Storage | |
|---|---|
| Bluetooth range max | 32 ft (10 m) |
| Data Recording | 20,000 Pts (125 days max) |
| Memory | 99 internal storage locations |
| Power | |
|---|---|
| Battery Type | 6 x AAA |
| General | |
|---|---|
| Packaging Size | 11 cm x 14 cm x 32 cm (4.3in. x 5.5in. x 12.6 in.) |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, UL, FCC |
| IP Rating_Drop Test | IP 54, 3 m (9.8 ft) |
| Safety Category | CAT IV-600V, CAT III-1000V |
| Warranty | Limited Lifetime |
