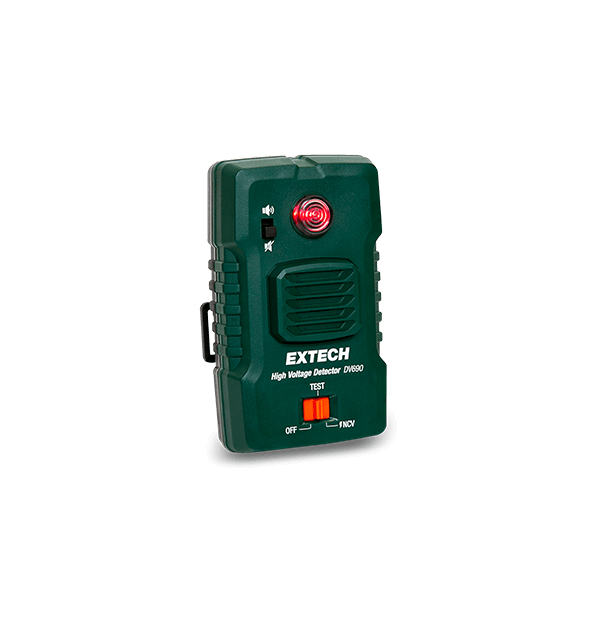

The Extech DV690 is a rugged and reliable voltage detector that can quickly and safely detect up to 69 kV in high-voltage (HV) electrical systems. This non-contact, industrial-grade tool provides an extra layer of protection for anyone who works around HV electrical systems including electric power utility, storm restoration, telecommunications, and public safety professionals. Audible and visual alarms notify users of dangerous voltage presence, helping them maintain a safe distance in hazardous locations. Plus, five flexible mounting options make it easy to operate the device to get the job done efficiently.
사양
| General | |
|---|---|
| Audible/Visible Indication | Beeper (>106 dB at 0 cm), flashing LED (507 lux) |
| Drop test | 4 ft (1.2 m) |
| Frequency Bandwidth | 50/60 Hz |
| Voltage Detection (Non-Contact) | 100 V AC to 69 kV AC |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.24 × 3.03 × 2.05 in (133 × 77 × 52 mm) |
| IP Rating | IP54 |
| Power | 3 × AA (1.5V) batteries |
| Safety Category | EN 61326-1 |
| Warranty | 2 years |
| Weight | 0.49 lb (220 g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
