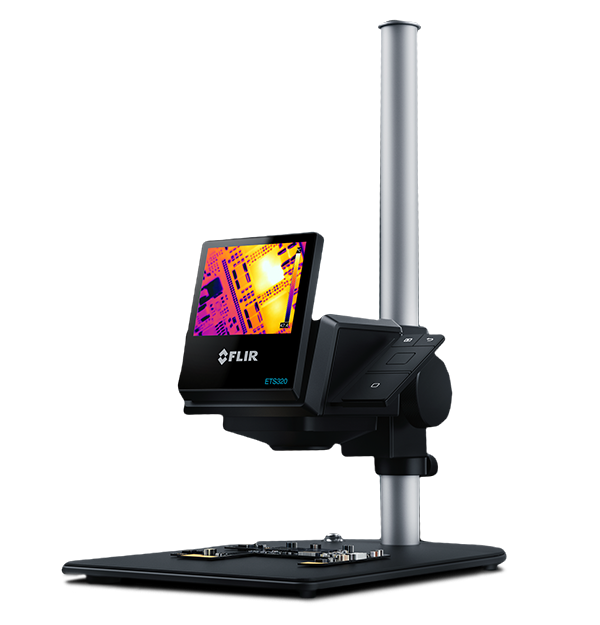

FLIR ETS320
Thermal Imaging System for Electronics Testing
Whether the goal is product testing or scientific research, heat can be an important indicator of how a system is functioning. The FLIR ETS320 is a non-contact thermal measurement system that pairs a high-sensitivity infrared camera with an integrated stand, for hands-free measurement of printed circuit boards and other small electronics.
One Step To Finding Hot Spots
This sensitive camera detects minute temperature shifts (< 0.06°C) and quantifies heat generation up to 250°C.
Offers 76,800 points of non-contact measurement and accuracy of ±3°C, so researchers can locate hot spots without concerns about heat sinks.
With a microscope-style stand that's quick to set up and simplified features, ETS320 allow researchers to focus on their work.
사양
| Highlighted | |
|---|---|
| IR Resolution | 320 x 240 (76,800 pixels) |
| Spectral Range | 7.5 - 13.0 µm |
| Detector Type | Uncooled microbolometer |
| Camera f_number | f/1.5 |
| NETD | <60 mK |
| Imaging & Optical | |
|---|---|
| Available Lenses | NA |
| Camera f_number | f/1.5 |
| Close_up Lenses_Microscopes | NA |
| Detector Type | Uncooled microbolometer |
| Field of view [FOV] | 45° x 34° |
| Fixed Focus Distance | 70 mm ± 10 mm |
| Image Frequency | 9 Hz |
| IR Resolution | 320 x 240 (76,800 pixels) |
| NETD | <60 mK |
| Non_radiometric IR video streaming | Uncompressed colorized video using USB |
| Radiometric IR video streaming | Full dynamic to PC (FLIR Tools/Tools+) using USB |
| Spectral Range | 7.5 - 13.0 µm |
| Spot Size Min. Focus | 170 µm |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Area | Box with max/min |
| Camera size [L x W x H] | 22 x 15 x 30 cm (8.7 x 5.9 x 11.8 in) |
| Camera weight incl battery | 0.575 kg (1.27 lbs) |
| Emissivity Correction | Variable from 0.1 to 1.0 |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| Spot Meter | Center spot |
| Communication & Data Storage | |
|---|---|
| Image File Format | Standard radiometric JPEG, 14-bit measurement data included |
| Interfaces | USB Micro: data transfer to and from PC and Mac devices |
| General | |
|---|---|
| List of Contents | Camera, mount, stand, power supply, USB cable, FLIR Tools+ software |
| Packaging Size | 2.9 kg (6.4 lb.) |
| User Interface | |
|---|---|
| Display | 3 in, 320 x 240 pixel color LCD |
| Power | |
|---|---|
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera |
| Charging Time | 2.5 hrs to 90% capacity |
| Environmental & Certifications | |
|---|---|
| Directives and Regulations | Battery Directive 2006/66/EC, EMI/EMC Directive 2014/30/EU, WEEE Directive 2012/19/EC, RoHS2 Directive 2011/65/EC, FCC 47 CFR Part 15 Class B, REACH Regulation EC 1907/2006 |
| Emissivity Table | Table of pre-defined materials |
| Encapsulation and Shock and Vibration | IP 40 (IEC 60529) |
| Operating Temperature Range | 10°C to 40°C (50°F to 104°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
