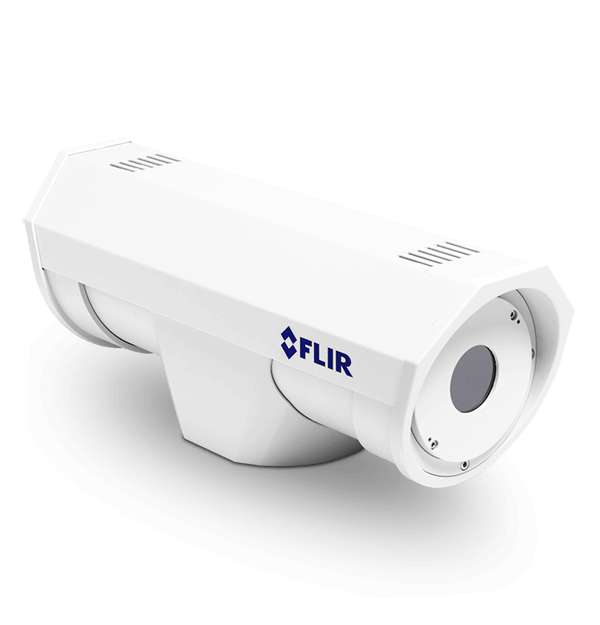

TRITON™ F-Series
Thermal Security Camera
F-Series high-resolution thermal security cameras are fixed-site cameras that give you video and control over both IP and analog networks. F-Series cameras define the new standard of performance with five models that provide 640 × 480 thermal resolution to give you greater image detail, longer detection range, and better analytics performance than ever before.
Long-range threat detection with enhanced analytics
The F-Series creates greater thermal scene detail, improving threat detection and alarm assessment from greater distances.
The camera uses open IP standards and is ONVIF-compliant and streams digital video in H.264, MPEG-4, and M-JPEG formats.
The F-Series improves coverage without compromising range performance, optimizing coverage efficiency while lowering overall installation costs.
사양
| Compliance & Certifications | |
|---|---|
| Compliance and Certifications | EN 61000-6-4: 2007 Class A/CISPR 22: 2005 Class A EN 61000-3-3: 1995+A1:2001+A2:2005 EN 61000-3-2: 2006 EN 50130-4: 1996+A1:1998+A2:2003 FCC Part 15, Subpart B, Class A IP 66 (IEC 60529) IEC 60068-2-27) |
| Environmental | |
|---|---|
| De-Icing/Anti-Icing | MIL-STD-810F, Method 521.1; 6 mm of ice |
| Humidity | 0-95% relative |
| IP Rating (dust & water ingress) | IP66 |
| Operating Temperature Range | -50°C to 70°C continuous operation -40°C to 70°C cold start |
| Shock | MIL-STD-810F "Transportation" |
| Storage Temperature Range | -55°C to 85°C |
| Vibration | IEC 60068-2-27 |
| General | |
|---|---|
| Detector Type | Long-Life, Uncooled VOx Microbolometer |
| Dimensions (L x W x H) | 18.1" × 5.5" × 6.3" (460 × 140 × 160 mm) |
| Input Voltage | 24 VAC (21-30 VAC) 24 VDC (21-30 VDC) |
| Power Consumption | 24 VDC = 10 W; 46 W (max w/heaters) 24 VAC = 15 VA; 51 VA (max w/heaters) |
| Thermal Effective Resolution | 76800.0 |
| Thermal Focus Range | Athermalized, Focus-Free |
| Thermal Pixel Pitch | 25 µm |
| Thermal Spectral Range | 7.5 µm to 13.5 µm |
| Thermal Zoom | 2× & 4x E-zoom |
| Weight | ~10.2 lb (4.8 kg); Configuration Dependent |
| System Integration | |
|---|---|
| Ethernet | Yes |
| External Analytics Compatible | Yes |
| Network APIs | Nexus SDK for comprehensive system control and integration Nexus CGI for http command interfaces ONVIF 2.0 Profile S |
| Serial Control Interfaces | RS-232/-422; Pelco D, Bosch |
| Thermal Camera | |
|---|---|
| Array format | 320 × 240 |
| Focal Length | 35 mm |
| Thermal Frame Rate | NTSC: 30 Hz or 7.5 Hz PAL: 25 Hz or 8.33 Hz |
| Video & Recording | |
|---|---|
| Composite Video NTSC or PAL | Yes: Hybrid IP & Analog |
| Video Compression | Two independent channels of streaming MPEG-4, H.264, or M-JPEG for each of two cameras; multiple streams per channel. |
| Video Image Uniformity Optimization | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Video Streaming Resolution | NTSC: D1 (720 × 480) 4SIF (704 × 480) VGA (640 × 480) SIF (352 ×240) QVGA (320 × 240) PAL: D1 (720 ×576) 4CIF (704 × 576) CIF (352 × 288) |
| Video Thermal AGC Modes | Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting |
| Video Thermal AGC Region of Interest [ROI] | Default, Presets and User definable to insure optimal image quality for subjects of interest |
수출 제한
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
