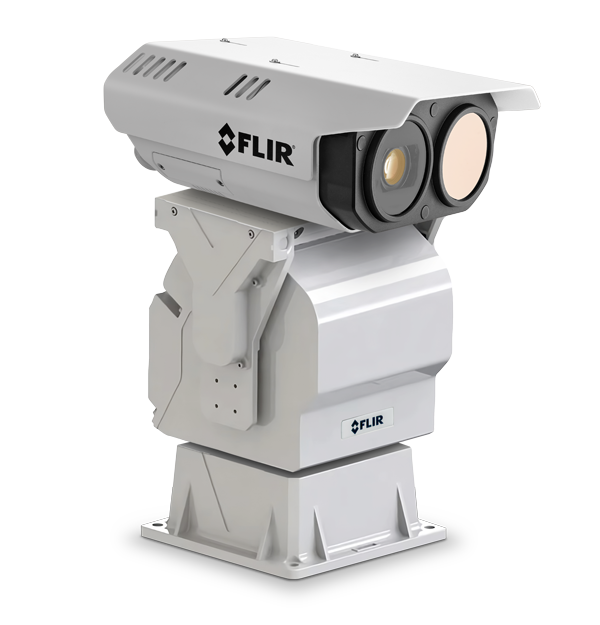

FH-Series™ R PTZ
Multi-Spectral Pan-Tilt-Zoom Camera for Fire Detection and Monitoring of Surface Temperature Thresholds
Product Variations

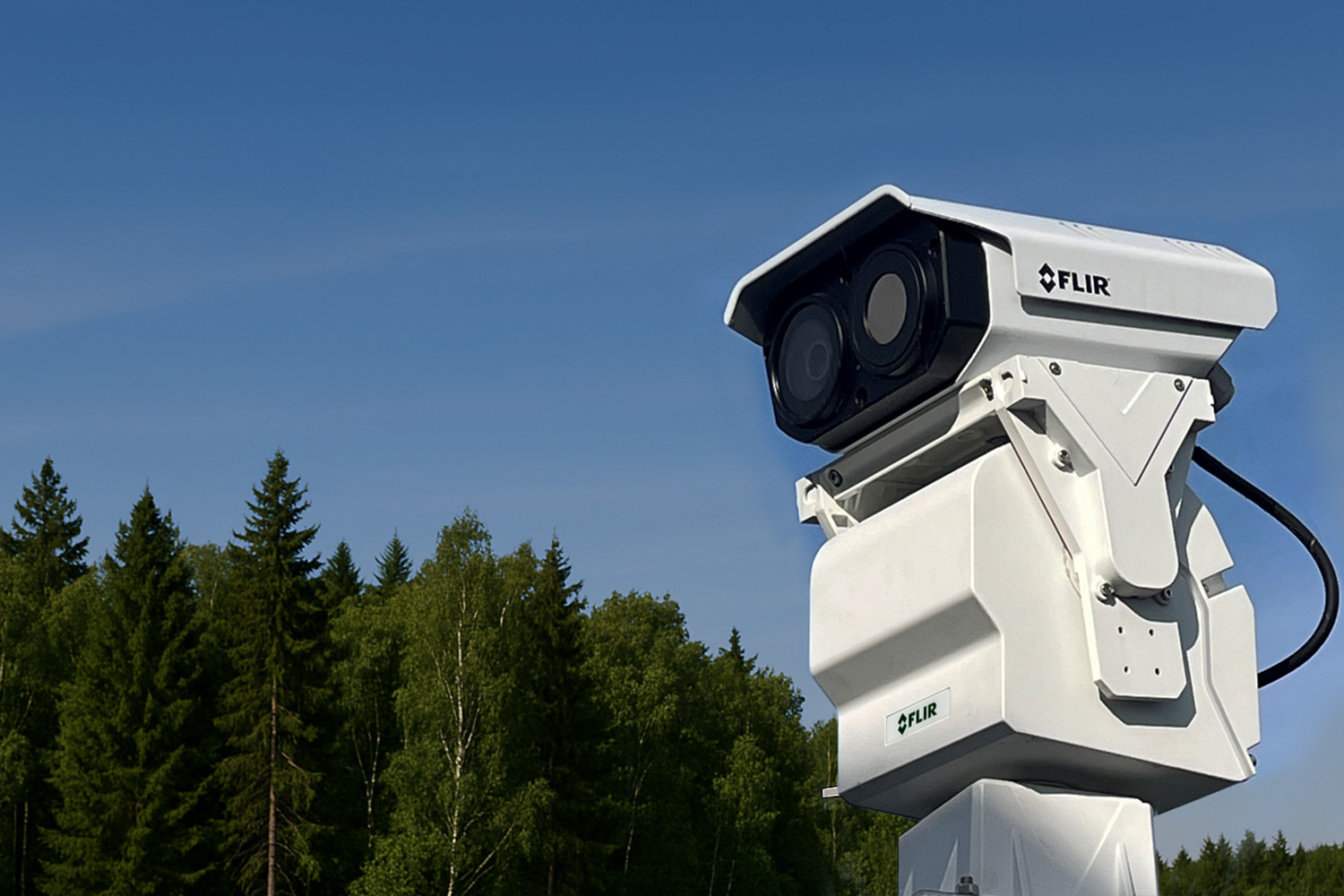

The FH-Series R PTZ is a rugged Pan-Tilt-Zoom visible plus thermal radiometric camera for fire detection and security applications. This multispectral camera integrates industry-leading thermal imaging with 1080p visible imaging to provide rapid visual verification of smoke and hot spots and for detecting fires early in outdoor areas. The onboard radiometry combined with Pan-Tilt-Zoom functionality enables continuous wide area coverage and round the clock monitoring against potential fires.
When a hot spot or surface temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics. Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality.
Effective Early Fire Detection
The FH-Series R PTZ offers a thermal, radiometric stream as well as 4K visible imaging to identify and visibly verify hot spots before they reach their ignition temperature. Perfectly suited to industrial, warehouse, or manufacturing locations, employing the FH-Series R PTZ for early fire detection improves safety, protects facilities, and prevents shutdowns.
Cybersecure and NDAA-Compliant
Securing your data is as important to us as site security is to you. Flir security cameras are ideal for cyber-hardened security systems for critical infrastructure and government applications. Flir development meets NDAA compliance standards by incorporating cybersecurity considerations in our process along with internal and external vulnerability tests, stringent code reviews, and rigorous IT protocols.
Detect and Verify Intruders
The FH-Series R PTZ features a high-resolution, 4K visible camera and up to 30x optical zoom to capture the vital details security personnel need to properly identify and assess situations, significantly improving response time.
Connecting Security Sensors with Flir Nexus
Seamlessly geo-track targets across wide areas through Flir Nexus, a proprietary communication protocol that helps bridge the gap between the FH-Series R PTZ, other cameras, radar devices, and their monitoring systems. Nexus enables seamless coordination with Flir radars and other thermal and visible cameras to maintain continuous tracking—even beyond a radar’s field of view.
Other Key Advantages
Integrates a high-resolution radiometric <35 mK NETD thermal sensor with a 1080p visual, 30x zoom camera for hot spot detection
and visual verification.
Measures surface temperatures and processes temperature differences in real time.
Onboard radiometry delivers minimum, maximum, average and differential temperature measurement in user-defined spots, box and polygon shaped areas.
Quote Carousel
“The investment in thermal imaging cameras is much less compared to fire suppressant systems. Apart from preventing physical damage and business loss, thermal cameras help to protect a brand’s reputation as well, especially in a highly competitive market like food production.”
“Thermal imaging security cameras have proven their worth here at Oranjemund (Diamond Mine). They are an excellent tool for spotting activity in total darkness and in harsh weather conditions.”
사양
| Compliance & Certifications | |
|---|---|
| Compliance and Certifications | FH R PTZ camera: FCC Part 15 (Subpart B, class A); UL Listed; RoHS; WEEE FH R PTZ camera plus PTU unit: Certifications Pending. ONVIF Profile S, G, T IEC 62368 |
| Cyber Security | |
|---|---|
| Security | IEEE 802.1X TLS / HTTPS User authentication Access control via firewall User credentials with policy enforcement Digest authentication |
| Environmental | |
|---|---|
| Humidity | FH R PTZ camera: 0-95% relative humidity PTU unit: <90% relative humidity |
| IP Rating (dust & water ingress) | IP66 |
| Operating Temperature Range | -35°C to 65°C (-31°F to 149°F) |
| Shock | IEC 60068-2-27 (FH R PTZ camera only) |
| Storage Temperature | FH R PTZ camera: -55°C to 85°C (-67°F to 185°F) PTU unit: -40°C to 70°C (-40°F to 158°F) |
| Vandal Resistance | IK10 (except windows; FH R PTZ camera only) |
| Vibration | IEC 60068-2-64 (FH R PTZ camera only) |
| General | |
|---|---|
| Detector Type | Long-life, uncooled Vox microbolometer |
| Enclosure | FH R PTZ camera: NEMA 4X PTU unit: aluminum alloy |
| Input Voltage | 24 V AC (±10%) 24 V DC (±10%)* *Ensure power supply is capped correctly to avoid overheating |
| Power Consumption | FH-Series R PTZ + PTU Unit: ≤150 W |
| Size [L × W × H] | tba |
| Surge Immunity on AC Power Lines | EN 50130-4 (FH R PTZ camera only) |
| Surge Immunity on Signal Lines | EN 50130-4 (FH R PTZ camera only) |
| Weight | 18.1 kg (41.4 lbs) |
| Measurement & Analysis | |
|---|---|
| Accuracy | Target below 100°C (212°F): ±5°C (±9°F) Target below 150°C (302°F): ±5% Target above 150°C (302°F): ±15% Measured at 25°C ambient temperature. Inaccuracy can increase at extreme temperatures. |
| Object Temperature Range | High Gain Mode: 0°C to 160°C (32°F to 320°F) Low Gain Mode: 0°C to 380°C (32°F to 716°F) |
| PTZ | |
|---|---|
| Pan Angle | 360° continuous |
| Pan Speed | 0.1°/s to ~55°/s |
| Presets - Preset Accuracy | Supports 200 valid preset bits; ±0.1° accuracy |
| Tilt Angle | -75° to ~40° |
| Tilt Speed | 0.1°/s to ~25°/s |
| System Integration | |
|---|---|
| Digital I_O | Input: two dry alarm contacts Output: two relay contacts, 1A max and 24 V AC/30 V DC Normally open or normally closed (configurable) |
| Ethernet | 100/1000 Mbps |
| Network APIs | NEXUS SDK, NEXUS CGI, ONVIF PROFILES S, G, and T |
| Streaming Resolution | Primary and Secondary Streams Thermal: VGA (640 × 512) Visible: 1080p (1920 × 1080), 720p (1280 × 720), VGA (640 × 480) |
| Supported Protocols | IPv4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X |
| Thermal Camera | |
|---|---|
| Array format | 640 × 512 |
| Focal Length | 35 mm |
| Image Uniformity Optimization | Automatic flat-field correction (FFC) - thermal and temporal triggers |
| Pixel Pitch | 17 µm |
| Sensitivity | <35 mK @ 25°C (77°F), f/1.0 |
| Spectral Range | 7.5 µm to 13.5 µm |
| Thermal AGC Region of Interest [ROI] | Default, presets, and user-definable to ensure optimal image quality on subjects of interest |
| Thermal Image Settings | Auto AGC, Digital Detail Enhancement (DDE), brightness, contrast |
| Video Frame Rate | NTSC: 5-30 fps / PAL: 5-25 fps |
| Visible Camera | |
|---|---|
| Array format | 640 × 512 |
| Focal Length | 35 mm |
| Sensitivity | <35 mK @ 25°C (77°F), f/1.0 |
| Spectral Range | 7.5 µm to 13.5 µm |
| Video Frame Rate | NTSC: 5-30 fps / PAL: 5-25 fps |
| Visible f number | f/1.6–f/4.4 |
| Video & Recording | |
|---|---|
| Video Compression | H.264/H.265/MJPEG: four independent streams (2 visible, 2 thermal) |
