Flir Edge
Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices
Compatible with the NEW iPhone 17

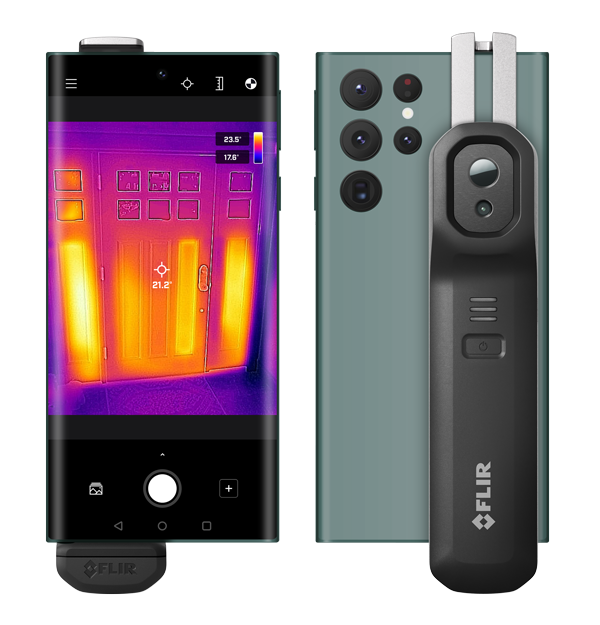

The Flir Edge (formerly Flir One Edge) allows you to easily inspect hard-to-reach areas from any position or angle. This infrared camera for smart phones connects wirelessly so you can inspect out-of-view targets—or clip it onto your phone or tablet for one-handed operation. The wireless connection also allows the same camera to be used with both Android and iOS devices, making it easy to share tools with your team members.
Flir One images are enhanced with Flir VividIR™ for brilliant thermal resolution; activate Flir's proprietary MSX® to add visual camera details to thermal images so you can clearly identify problems. All your thermal images and videos are saved directly to your mobile device and can be uploaded automatically to Flir Ignite™ for seamless reporting, sharing, and organization.
MSX Image Enhancement
Flir Edge Series cameras feature our unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX happens in real time so you can see it immediately on-screen.
Get More from the Flir One App
Flir One Series cameras connect to your smart device through the Flir One app, available on Google Play and the Apple App Store. Once connected, the app displays a live feed from your Flir One camera and can upload your recorded images and videos to the Flir IgniteTM cloud. You can also use the app to change camera and display settings, access help articles, activate step-by-step inspection guides, and find third-party apps for your specific application.
Flir One Mobile Apps for Your Unique Applications
Our third-party partners offer a wide range of Flir One-compatible mobile apps, and each offers solutions tailored to specific needs.
Check out the RocketPlan app, for example. It digitizes the claims process within restoration.
Or there's the MultiSens-1234 app—for plotting multiple sensor data within condition monitoring—and the ThermaFY Home app which analyzes your home's energy efficiency.
Click below to explore all the available apps. Or, if you are interested in developing an app or integrating thermal into your app, create a developer account today.
Featured 3rd Party Apps
Flir One-compatible mobile apps can offer inspection, imaging, and reporting solutions tailored to your specific needs. Featured examples include:
- Home Boost—helps homeowners find hidden problems that drive up energy bills.
- HouseRater—allows homebuilders to collect new home energy efficiency data.
- iCertify—for BS7671 electrical testing, inspection, and certification in the field.
- Knauf Pro+—helps audit space to calculate insulation needs and detect potential energy loss.
사양
| Highlighted | |
|---|---|
| Thermal Resolution | 80 × 60 (native resolution), 240 × 180 (super resolution) |
| Battery Life | Approximately 2 hours 30 minutes |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F) |
| Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| Imaging & Optical | |
|---|---|
| Adjustable MSX distance | 30 cm - Infinity |
| Focus | Fixed 30 cm - Infinity |
| Frame Rate | 8.7 Hz |
| HFOV_VFOV | 54° ±1° / 42° ±1° |
| Image Modes | MSX, Infrared, Visual |
| Palette | Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel |
| Shutter | Automatic/Manual |
| Thermal Resolution | 80 × 60 (native resolution), 240 × 180 (super resolution) |
| Thermal Sensitivity_NETD | 70 mK |
| Thermal Sensor | Pixel size 12 µm, 8 to 14 µm spectral range |
| Visual Resolution | 640 × 480 |
| VividIR | No |
| Power | |
|---|---|
| Battery charge time | 60–90 min for fully charged 15 min charging, from empty battery, gives 40 min operating time |
| Battery Life | Approximately 2 hours 30 minutes |
| Charging Method | Female USB-C (5V/1A) |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Measurement Corrections | Emissivity; Reflected apparent temperature (22°C / 72°F) |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| General | |
|---|---|
| Additional Integrations | Available via device App Store. Development SDK available: https://www.flir.com/developer/mobile-sdk/ |
| Battery charge monitor | 0 to 100% |
| Clip Span | 130 mm (min) / 195 mm (max) |
| Compatible with FLIR software | FLIR ONE app, FLIR Ignite, FLIR Thermal Studio |
| Device Compatibility | iOS ( version 17 and later) or Android (version 13 and later) smartphones and tablets |
| Dimensions [H x W x D] | 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in) |
| Form Factor | Phone |
| Remote Operation | Up to 5 m (16.4 ft) from smart device |
| Weight | 153 g (5.4 oz) |
| Environmental & Certifications | |
|---|---|
| Certifications | RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU |
| Drop test | Drop from 2 m (6.56 ft) |
| Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% |
| IP Rating | IP54 |
| Non Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Communication & Data Storage | |
|---|---|
| Bluetooth | Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device |
| Capture modes | Video, Still image |
| Charging | Female USB-C (5V/1A) |
| File Formats | Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android) |
| WiFi | 802.11 a/b/g/n |
Accessories
