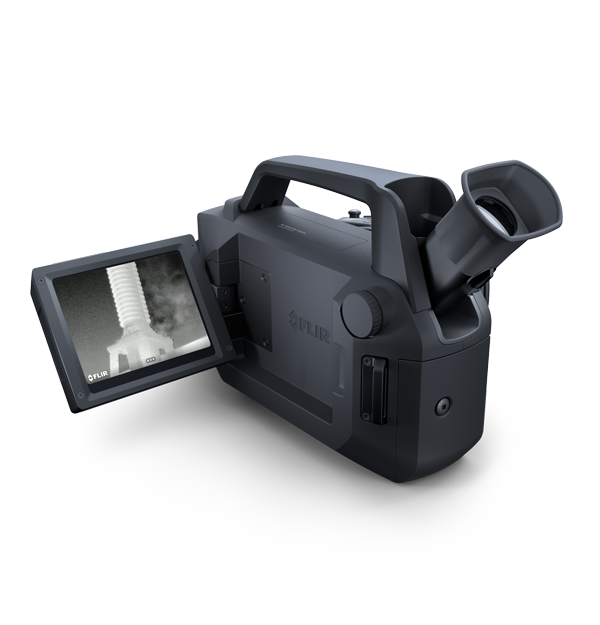

FLIR G306
Optical Gas Imaging (OGI) Camera for Sulfur Hexafluoride (SF₆)
Product Variations
The FLIR G306 is an innovative Optical Gas Imaging (OGI) camera used to visualize sulfur hexafluoride (SF₆), ammonia (NH₃), ethylene (C₂H₄), and other industrial gas leaks in various environments. SF₆ is a potent greenhouse gas with a global warming potential that’s more than 23,000 times greater than C0₂ over a 100-year period. SF₆ is commonly used within the electric power industry as an insulator and quenching medium for gas-insulated substations and circuit breakers. With the portable, non-contact G306, you can safely and efficiently scan substations for dangerous and environmentally harmful gas leaks without interfering with electric utility delivery or shutting down industrial operations.
The FLIR G306 accurately measures temperatures from -40°C to 500°C (-40°F to 932°F) and FLIR’s patented High-Sensitivity Mode (HSM) makes (SF₆) and other industrial gas leaks stand out more clearly while allowing you to efficiently scan thousands of components
Built-in Wi-Fi and Bluetooth® allow you to connect to smartphones or tablets and effortlessly edit and store images in the cloud, or wirelessly transfer files using the included FLIR Ignite™ cloud service
Comfortably operate and interact with your G306 thanks to a rotating 10.16 cm (4 in) LCD touchscreen, which allows you view targets from any direction
사양
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 pixels (76,800 pixels) |
| Detector Pitch | G306 14.5°: 30 µm G306 24°: 30 μm |
| Accuracy | G306 14.5°: ±1°C (±1.8°F) for temperature range (0°C to 100°C, 32°F to 212°F) or ±2% of reading for temperature range (>100°C, >212°F) G306 24°: ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F) |
| Spectral Range | 10.3 µm to 10.7 µm |
| Imaging & Optical | |
|---|---|
| Adjustable Viewfinder | Built-in, tiltable OLED, 800 × 480 pixels |
| Camera f_number | 1.59 |
| Color LCD | 4", 640 × 480 pixel rotatable, touchscreen LCD |
| Color palettes | G306 14.5°: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC G306 24°: Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC |
| Detector Pitch | G306 14.5°: 30 µm G306 24°: 30 μm |
| Detector Type | G306 14.5°: Focal plane array, cooled QWIP G306 24°: Focal plane array (FPA), cooled QWIP |
| Display Frame Rate | 60 Hz |
| Field of View | G306 14.5°: 14.5° × 10.8° G306 24°: 24° × 18° (23 mm) |
| Focus | Manual or Automatic |
| Image Analysis | 10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections |
| Image Modes | G306 14.5°: IR image, visual image, High Sensitivity Mode (HSM) G306 24°: IR image, visual image, high sensitivity mode (HSM), noise reduction filter |
| IR Resolution | 320 × 240 pixels (76,800 pixels) |
| Laser Spot | Yes |
| MPEG Video Recording | Yes |
| Radiometric IR Video | RTRR (.csq), Over UVC |
| Radiometric JPG | Yes |
| Sensor Cooling | Stirling Microcooler (FLIR MC-3) |
| Spectral Range | 10.3 µm to 10.7 µm |
| Video Recording and Streaming | G306 14.5°: Real-time non-radiometric streaming: RTP/MPEG4 G306 24°: H.264 to memory card |
| Visual Image | 3.2 MP from integrated visible camera |
| Zoom | G306 14.5°: 1-8x continuous, digital zoom G306 24°: 1 – 8× continuous, digital zoom |
| Measurement & Analysis | |
|---|---|
| Accuracy | G306 14.5°: ±1°C (±1.8°F) for temperature range (0°C to 100°C, 32°F to 212°F) or ±2% of reading for temperature range (>100°C, >212°F) G306 24°: ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F) |
| Area Box | 5 (min./max./avg.) |
| Delta T | Yes |
| Gas Sensitivity | SF₆: <0.3 ppm x m (ΔT = 10°C, Distance = 1 m) |
| Measurement Corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Profile | 1 live line (horiz. or vert.) |
| Recording | MultiREC Recording; Record multiple files automatically in customizable order |
| Spot Meter | 10 |
| Temperature Range | -40°C to 500°C (-40°F to 932°F) Available sub ranges: -40°C to 50°C (-40°F to 122°F) -20°C to 120°C (-4°F to 248°F) 80°C to 250°C (176°F to 482°F) 150°C to 350°C (302°F to 662°F) 250°C to 500°C (482°F to 932°F) |
| Thermal Sensitivity | <15 mK @ 30°C (86°F) |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth via headset, Wi-Fi, HDMI |
| Image File Format | Standard JPEG, measurement data included. Infrared-only mode |
| Radio | Operating frequency: •Bluetooth + EDR: 2402–2480 MHz •WLAN 2.4 GHz: 2412–2462 MHz •WLAN 5 GHz: 5150-5250 MHz Note that frequency band 5150-5250 MHz is for indoor use only, see national regulations. RF output (EIRP) • Bluetooth + EDR: <10 dBm •WLAN: <17 dBm Antenna •Integrated PIFA antenna (gain: maximum 2.6 dBi) |
| Storage Media | Removable SD card |
| Video Out | HDMI, DVI |
| General | |
|---|---|
| Annotations | Voice: 60 seconds with Bluetooth on still images and video Text: Text from predefined list or soft keyboard on touchscreen Image Sketch: Yes, on infrared only |
| Cloud Services | Via Wi-Fi; FLIR Ignite for direct, secure image uploading, organizing, storage, and sharing (required firmware available) |
| FLIR Inspection Route | Enabled in the camera |
| GPS [removable] | Location data automatically added to every still image and first frame in video from built-in GPS |
| Laser Pointer | Class 2 |
| Package Includes | Infrared camera with lens, battery (2 pcs), battery charger, power supply including multi-plugs, hand strap, neck strap, lens cap, lens cap strap, memory card, HDMI-HDMI cable, USB cable, screwdriver TX20, knob screw (optional screw for the rear cover), printed documentation, hard transport case |
| Packaging Size | G306 14.5°: 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in) G306 24°: 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
| Size [L x W x H ] w Lens | 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in) |
| Weight [incl lens & batteries] | 3 kg (6.18 lb) |
| User Interface | |
|---|---|
| Languages | 21 |
| Power | |
|---|---|
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery; 7.4 V, charged in camera or separate 2-bay charger |
| Charging Time | 2.5 hours to 95% capacity, charging status indicated by LEDs |
| Start Up Time | Typically 7 min. at 25°C (77°F) |
| Environmental & Certifications | |
|---|---|
| Certifications | RoHS: 2011/65/EU WEEE: 2012/19/EU RED: 2014/53/EU EMC: ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 55032 (emission), EN 55035 (immunity), EN 61000-4-8 Level 5 (magnetic field), EN 61000-6-2, Immunity Industrial Environment, FCC 47 CFR part 15 B, class B (emission), ICES-003 |
| Encapsulation | IP54 (IEC 60529) |
| Mounting | G306 14.5°: UNC 1/4"-20 G306 24°: UNC ¼"-20 |
| Operating Temperature Range | G306 14.5°: –20°C to 40°C (–4°F to 104°F) G306 24°: -20°C to 50°C (-4°F to 122°F) |
| Shock and Vibration | Shock: 25 g (IEC 60068-2-27); Vibration: 2 g (IEC 60068-2-6) |
| Storage Temperature Range | G306 14.5°: –30°C to 60°C (–22°F to 140°F) G306 24°: -30°C to 60°C (-22°F to 140°F) |
