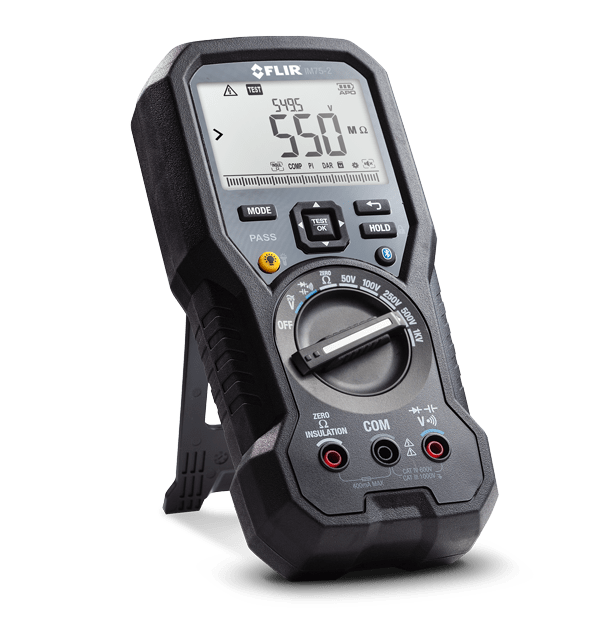

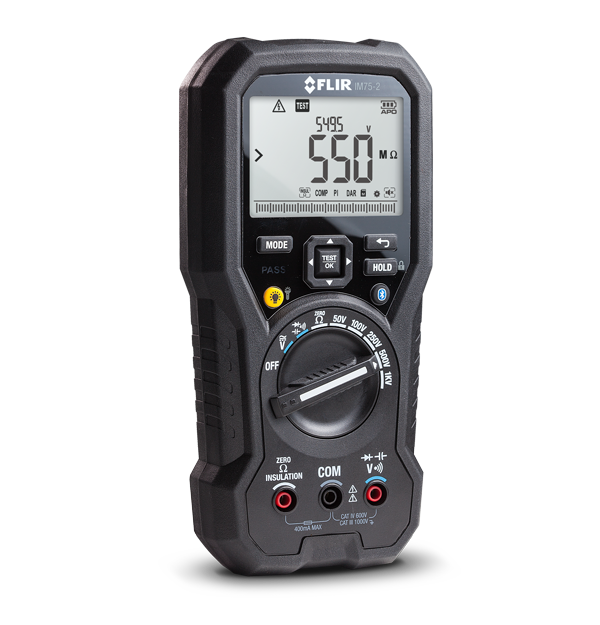

The FLIR IM75-2 is both an advanced multifunction digital multimeter and a premier handheld insulation tester with functions for installation, troubleshooting and maintenance for professionals. The FLIR IM75-2 includes several specialty insulation modes such as polarization index, dielectric absorption, and earth bond resistance. Insulation tests can be performed instantly, continuously, and over a timed duration to allow for in-depth assessment. The multi-color LED indicator in compare mode makes pass/fail determinations easy and visible. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.
• Advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals
• Insulation voltage testing up to 1 kV, measuring insulation resistance from 4 MΩ to 20 GΩ
• Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once
• True RMS DMM measurements features reliable performance and 1000 V range
• Insulation voltage testing up to 1 kV, measuring insulation resistance from 4 MΩ to 20 GΩ
• Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once
• True RMS DMM measurements features reliable performance and 1000 V range
• Constructed to make any electrical problem easier to troubleshoot
• Powerful LED worklights eliminate the need for a flashlight in dim lighting
• Durable, double-molded construction with IP54 rating and 3 m drop tested
• Large, easy-to-read digits and backlit display
• Multi-color LED indicator with Compare Mode makes pass/fail determinations easy and visible
• Powerful LED worklights eliminate the need for a flashlight in dim lighting
• Durable, double-molded construction with IP54 rating and 3 m drop tested
• Large, easy-to-read digits and backlit display
• Multi-color LED indicator with Compare Mode makes pass/fail determinations easy and visible
• Wireless communication with the FLIR METERLiNK® App
• Capture readings, create reports and easily share them with your team
• Perform measurement comparisons over time
• Set custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures
• Capture readings, create reports and easily share them with your team
• Perform measurement comparisons over time
• Set custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures
사양
| Highlighted | |
|---|---|
| Insulation Resistance | 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits) |
| Insulation Test Voltages | 50 V for max. 50.0 MΩ 100 V for max 100.0 MΩ 250 V for max. 250.0 MΩ 500 V for max. 500.0 MΩ 1000 V for max.20 GΩ |
| Category Rating | CAT IV-600 V, CAT III-1000 V |
| Measurement & Analysis | |
|---|---|
| AC Voltage | 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 500 Hz ± (2.0% + 5 digits) |
| Capacitance | 1000 µF ± (1.2% + 2 digits) 10.00 mF ± (1.2% + 20 digits) |
| Category Rating | CAT IV-600 V, CAT III-1000 V |
| Continuity | 400.0 Ω ± (0.5% + 2 digits) |
| DC Voltage | 1000.0 V ± (0.1% + 5 digits) |
| Earth Bond Resistance | 40.00 Ω ± (1.5% + 5 digits) 400.0 Ω ± (1.5% + 3 digits) 4000 Ω ± (1.5% + 3 digits) 40.00 kΩ ± (1.5% + 3 digits) |
| Frequency [ACV] | 400.0 Hz ± 5 digits 4.000 kHz ± 5 digits 40.00 kHz ± 5 digits |
| Insulation Resistance | 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits) |
| Insulation Test Voltages | 50 V for max. 50.0 MΩ 100 V for max 100.0 MΩ 250 V for max. 250.0 MΩ 500 V for max. 500.0 MΩ 1000 V for max.20 GΩ |
| VFD AC Voltage | 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 400 Hz, ± (5.0% + 5 digits) |
| Communication & Data Storage | |
|---|---|
| Bluetooth range max | 10 m (32 ft) |
| Memory | 99 storage locations |
| Power | |
|---|---|
| Battery Type | 6 × 1.5 V AAA alkaline batteries |
| Environmental & Certifications | |
|---|---|
| Certifications | FCC Class B, CE, UL, UKCA, RCM |
| Drop test | 3 m (9.8 ft) |
| IP Rating | IP54 dust-protected and splash-resistant |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Warranty | https://www.flir.com/testwarranty |
