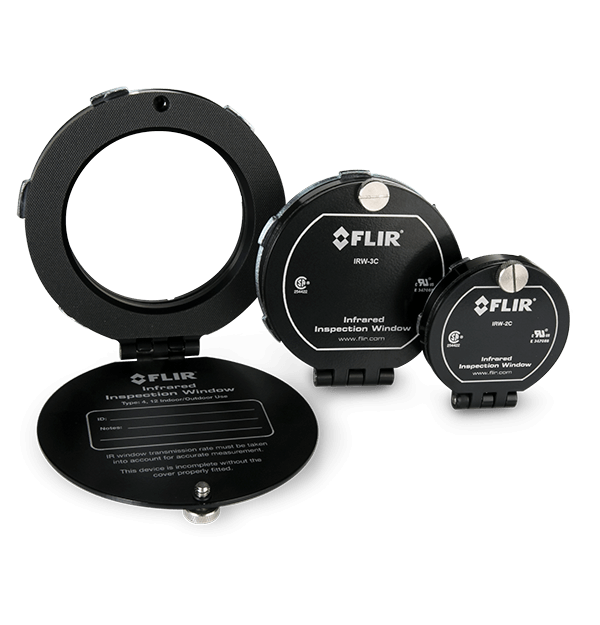

FLIR's IR Windows add a barrier between you and energized equipment, protecting you from arc flash accidents. IR windows are easy to install, easy to use, and will help you work with greater confidence. You’ll perform inspections more efficiently and reduce the threat of arc flash injury, all while staying in compliance with NFPA 70E requirements. Choose the anodized aluminum frame, or opt for durable stainless steel to prevent mixed metal issues.
Inspect Through The Window Of Safety
FLIR IR Windows' broadband crystal lenses transmit short, mid, and longwave IR while also allowing illumination to shine through.
FLIR'S tried-and-true PIRma-Lock™ locknut technology holds the ring in place so there's no need for extra screws.
Choose the standard anti-corrosion anodized aluminum frame, or if there are mixed-metal concerns, opt for durable stainless steel.
Specifications
| Highlighted | |
|---|---|
| Body Material | Anodized Aluminum or Stainless Steel AISI 316 |
| Broadband IR Short Mid & Longwave | Yes |
| Maximum Operating Temperature | 500°F/260°C |
| NEMA Environment Type | Type 4/12 (outdoor/indoor) |
| Required Hole Diameter [Nominal] | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 2-3/8" (60.3mm) FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 3.5" (88.9mm) FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 4.5" (114.3mm) |
| Warranty | Limited Lifetime Warranty Against Manufacturer Defects |
| Window Thickness | 2mm (0.07") |
| Imaging & Optical | |
|---|---|
| Broadband IR Short Mid & Longwave | Yes |
| Crystal Insert Diameter | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 50mm (1.97") FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 75mm (2.95") FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 95mm (3.74") |
| Greenlee Punch | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 76BB FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 739BB FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 742BB |
| Overall Thickness | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 85.5mm (3.36") FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 107.4mm (4.22") FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 136.5mm (5.37") |
| Picture_in_Picture and Fusion Image Blending | Yes |
| Viewing Aperture Area | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 1590mm^2 (2.46in^2) FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 3739mm^2 (5.79in^2) FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 6221mm^2 (9.64in^2) |
| Viewing Aperture Diameter | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 45mm (1.77") FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 69mm (2.71") FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 89mm (3.50") |
| Visible Light Spectrum | Yes |
| Measurement & Analysis | |
|---|---|
| CSA Certification Product Class 3211 07 | Yes |
| KEMA [IEC 62271_200] | Arc flash test standard: 5kV, 63kA for 30 cycles at 60Hz |
| Maximum Pullout Strength | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 657 kg (1450 lbs) FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 1655 kg (3650 lbs) FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 1678 kg (3700 lbs) |
| TUV [ANSI_IEEE C37202 section A36] | Impact Resistant Cover |
| TUV [IEC 60068_2_3] | 15-day extreme humidity withstand |
| TUV [IEC 60068_2_6] | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 100 m/s^2 vibration withstand FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 101 m/s^2 vibration withstand FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 102 m/s^2 vibration withstand |
| TUV [IEC 60529] | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: IP67 FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: IP68 FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: IP69 |
| UL 50 Environment | Type 4/12 |
| Underwriters Laboratories [UL 50V] | Yes |
| Environmental & Certifications | |
|---|---|
| Maximum Operating Temperature | 500°F/260°C |
| NEMA Environment Type | Type 4/12 (outdoor/indoor) |
| Optic Maximum Temperature | 1355.6°C (2474°F) |
| Voltage Range | Any |
| Warranty | Limited Lifetime Warranty Against Manufacturer Defects |
| General | |
|---|---|
| Body Material | Anodized Aluminum or Stainless Steel AISI 316 |
| Overall Height | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 85.5mm (3.36") FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 107.4mm (4.22") FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 136.5mm (5.37") |
| Overall Width | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 73mm (2.87") FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 99mm (3.89") FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 127.44mm (5.01") |
| Packaging Size | FLIR IRW-2C 2 inch: 120 x 115 x 40 mm (4.7 x 4.5 x 1.6 in.) FLIR IRW-4C 4 inch: 165 x 175 x 40 mm (6.50 x 6.89 x 1.58 in.) |
| Required Hole Diameter [Nominal] | FLIR IRW-2C 2 inch, FLIR IRW-2S Stainless 2 inch: 2-3/8" (60.3mm) FLIR IRW-3C 3 inch, FLIR IRW-3S Stainless 3 inch: 3.5" (88.9mm) FLIR IRW-4C 4 inch, FLIR IRW-4S Stainless 4 inch: 4.5" (114.3mm) |
| Window Thickness | 2mm (0.07") |
