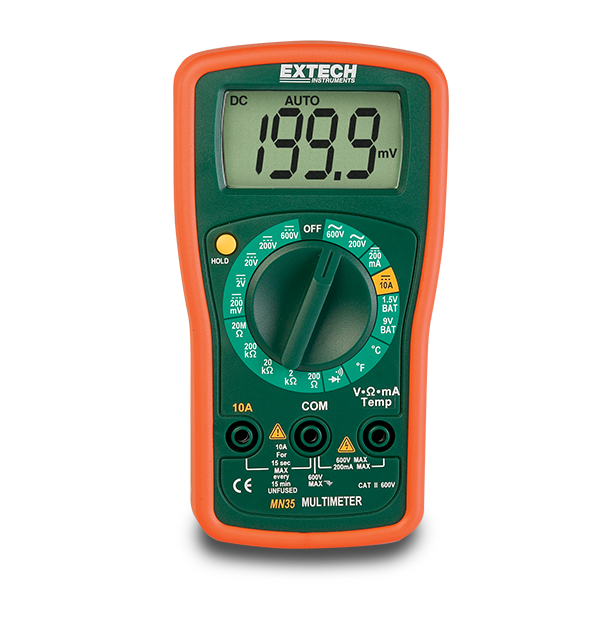

The MN35 is a convenient mini size multimeter with protective rubber holster and tilt stand. Manual ranging, measures AC and DC Voltage to 600V, Resistance with Continuity and Diode functions, DC Current to 10A, Temperature, and 9V/1.5V Battery test. Includes protective rubber holster, 9V battery, test leads and Type K thermocouple probe.
사양
| General | |
|---|---|
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Battery Test | 9V and 1.5V |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.5% |
| DC Current Max Resolution | 0.1mA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Resistance | 20MΩ |
| Resistance Max Resolution | 0.1µΩ |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 750°C) |
| Temperature (Type N) | ±(1% of reading + 4°) |
| Temperature (Type N) Basic Accuracy | 1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Power | 1 × 9V battery |
| Safety Category | CATII - 600V |
| Warranty | 2 years |
| Weight | 5.4oz (153g) |
