Note: For additional support resources, please visit Support.FLIR.com.

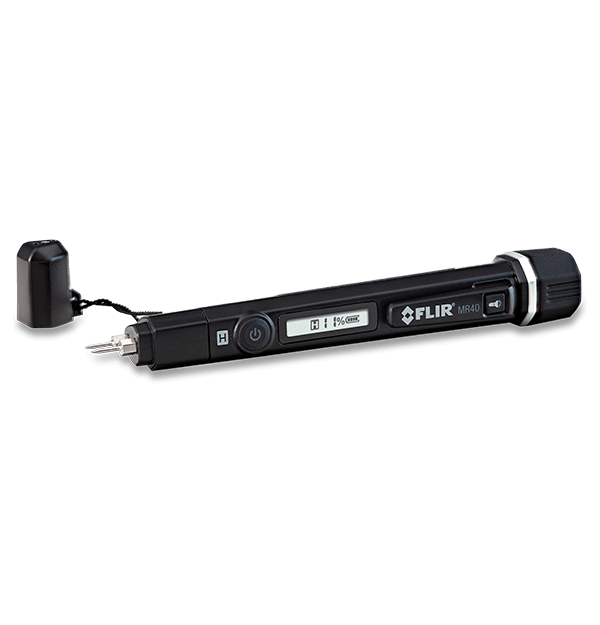

The FLIR MR40 is a pocket-portable, rugged 2-pin, single-scale moisture meter with an integrated flashlight for wood and common building materials — ideal for builders, building inspectors, remodelers, moisture remediation technicians, pest control professionals, and residential roofing and flooring contractors. Providing reliable and accurate measurements offered at a highly affordable price point, MR40 is a quick and easy-to-use tool to find and quantify moisture content.
Equipped with a clear LCD display, a simple On/Off button with 'Auto Power Off', replaceable pins, and an audible indication of measured range, the MR40 is a simple and effective tool for reliable measurements.
The MR40 is small enough to carry in your pocket, IP54 splash-proof rated, and 3-meter drop tested, so it's always ready to work when — and wherever— you are.
The MR40 has all the essential features you need to quickly verify moisture and determine the severity of the problem including a measurement 'hold' function and calibration/pin check integrated in the cap.
Specifications
| Highlighted | |
|---|---|
| Measurement Accuracy | 5 to 30% MC (Moisture Content): +/- 2%30 to 60% MC (Moisture Content): Reference onlyNote: For materials other than Group 9/Building Materials: plywood, drywall, and oriented strand board (OSB), download the MR40 Material Conversion Table (publication MR40-AN01): http://tinyurl.com/jteb653 |
| Measurement Range | 5% to 60% MC (Moisture Content) |
| Display | LCD |
| Flashlight | ~40 lumens |
| Measurement & Analysis | |
|---|---|
| Audible Indication | 5 to 12%: Low Beep rate. 13 to 60%: Higher beep rate.More than 60%: Highest Beep rate (Display OL) |
| Calibration Cycle | N/A |
| Calibration_Pin Check Integrated in Cap | 0.16 |
| Measurement Accuracy | 5 to 30% MC (Moisture Content): +/- 2%30 to 60% MC (Moisture Content): Reference onlyNote: For materials other than Group 9/Building Materials: plywood, drywall, and oriented strand board (OSB), download the MR40 Material Conversion Table (publication MR40-AN01): http://tinyurl.com/jteb653 |
| Measurement Principle | Electrical Resistance |
| Measurement Range | 5% to 60% MC (Moisture Content) |
| User Interface | |
|---|---|
| Display | LCD |
| Power | |
|---|---|
| Auto Power Off [APO] | 3 minutes |
| Battery Life | 70 Hrs W/O Flashlight |
| Battery status indicator | 4 Bar battery icon |
| Battery Type | 2 × AAA alkaline batteries (included) |
| General | |
|---|---|
| Dimensions [H x W x L] | 193 x 26 x 31 mm (7.6" x 1.0" x 1.2") |
| Electrode Pins | Integrated, Replaceable (4 pins included) |
| Flashlight | ~40 lumens |
| Material | PC-ABS w/TPE Overmold |
| Packaging Size | 24.5 cm x 8.5 cm x 6.5 cm (9.7 in. x 3.4 in. x 2.5 in.) |
| Weight | 80g (2.8 oz) with batteries |
| Environmental & Certifications | |
|---|---|
| Certifications | CE |
| Drop test | 3 m (9.8 ft.) |
| IP Rating | IP54 Splash Proof |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Warranty | Limited 3-Year Warranty |
