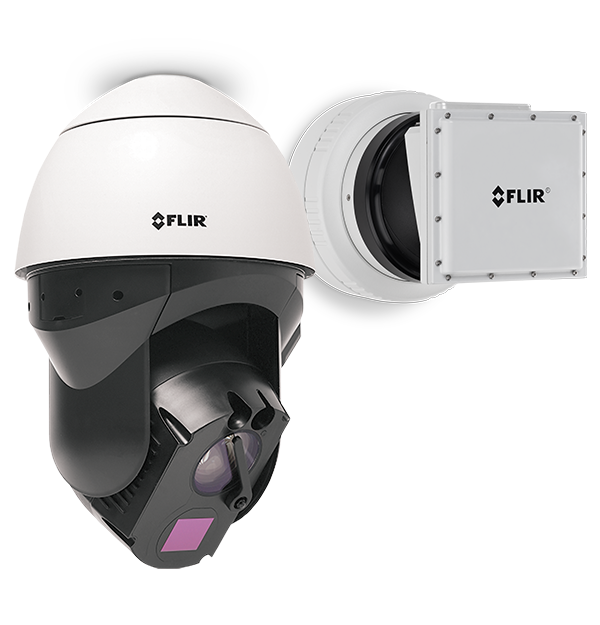

FLIR NEXUS® Bundle
Elara™ DX-Series + Radar Detection with FLIR Nexus Logic
Product Variations
The FLIR Nexus Bundle combines a FLIR Elara™ DX-Series multispectral pan/tilt/zoom (PTZ) security camera with an Elara R-290 ground radar for complete situational awareness in the most punishing environments. The full coverage of radar, thermal imaging, and visible light imaging gives operators the ability to monitor large areas in complete darkness, glaring light, and adverse weather. The Elara DX-Series' exceptional detection and identification capabilities help integrators provide solutions for challenging imaging problems while the Elara R-290 radar offers up to 400-meter range for vehicle tracking and 200-meter range for human tracking with the ability to guide PTZ cameras for visual verification to maximize security coverage.
Complete awareness in any lighting or weather conditions, with dual thermal/visible camera coverage as well as 90° field-of-view
ground radar.
Continuously track and precisely locate up to 32 targets simultaneously, with seamless device-to-device communication—including alarm triggering—through FLIR Nexus.
Integrates radar target tracking information as well as visible and thermal data with FLIR United VMS and other, third party video management systems for precise accuracy and full control.
Specifications
| Konformität und Zertifizierungen | |
|---|---|
| Compliance and Certifications | FCC Part 15 (Subpart B, class A) CE Marked RoHS IP66 WEEE NEMA 4X IEC 62368 ONVIF Profile S |
| Umgebungsfaktoren | |
|---|---|
| Humidity | 0-95% relative |
| IP Rating | IP66 |
| Operating Temperature | Radar: -40°C to 70°C (-40°F to 158°F) Camera: -40°C to 60°C (-40°F to 140°F) |
| Shock | IEC 60068-2-27 |
| Storage Temperature | -55°C to 85°C |
| Vibe | IEC 60068-2-64 |
| Allgemeine Angaben | |
|---|---|
| Detector Type | Long-Life, Uncooled VOx Microbolometer |
| Focus Range | Athermalized, Focus-Free |
| Input Voltage | Radar: 12V DC, 24V AC, and PoE+ Camera: 24 VAC (±10%), Universal PoE injector |
| I_Os | RJ45 Ethernet, 10-pin Terminal Block |
| Power Consumption | Radar: 7.5 W Camera: 24 VAC max: 61 W, PoE max: 43 W |
| Protocols | AXML, ONVIF, FLIR Nexus SDK, FLIR Nexus CGI |
| RF Transmit Power | 14 dBm (0.025 W) |
| Visible Sensor Type | Full HD 4K, 1/1.8-type CMOS |
| Weight | Radar: 2.4 kg (5.29 lbs) Camera: 9.1 kg (20.06 lbs |
| Zoom | Visible: Optical Zoom–31, Continuous e-zoom to 8x Thermal: Continuous e-zoom to 4x |
| Messung und Analyse | |
|---|---|
| Angular Accuracy | 0.6° |
| Coverage Area | 7.6 acres / 30,000 m² (Human Detection) |
| Frequency Range | 24.000–24.250 GHz ISM Band |
| Human Detection Range | 200 m (656 ft) |
| Min Target Detection Speed | 0.2 m/s (0.65 f/s) |
| Programmable Presets | 256 |
| Radar Targets | Max 32 |
| Range Resolution | 1.5 m (4.92 ft) |
| Target Information | GPS coordinates, velocity, RCS, range, azimuth angle/direction, heading, course/track, target ID |
| Vehicle Detection Range | 400 m (1312 ft) |
| Schwenken/Neigen/Zoomen | |
|---|---|
| Pan Speed | Continuous 360° 0.1° to 90° /sec |
| Tilt Speed | -10° to 190° 0.1° to 60°/sec |
| Systemintegration | |
|---|---|
| Digital I_O | Input: 4 Sets / 5 V 10 kΩ pull up Output: 2 Set / Relay output, max. 130 mA 24 VDC/AC |
| Ethernet | 10/100/1000 Mbps |
| Network APIs | FLIR SDK, FLIR CGI, ONVIF Profile S |
| Streaming Resolutions | Thermal: QVGA to VGA Visible: VGA to 4k |
| Supported Protocols | Radar: AXML, ONVIF, FLIR Nexus SDK, FLIR Nexus CGI Camera: IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP |
| Wärmebildkamera | |
|---|---|
| Array format | 640 × 480 |
| Focal Length | Visible: 6.5 mm–202 mm Thermal: 8.7 mm |
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC) – thermal and temporal triggers |
| Lens Field of View | HFOV: 61.8° - 2.15° VFOV: 36.65° - 1.2° |
| Optical Characteristics | FOV: 50° × 38° Focal Length: 8.7 mm |
| Pixel Pitch | 12 µm |
| Spectral Range | 7.5 μm to 13.5 μm |
| Thermal AGC Region of Interest [ROI] | Default, Presets and User Definable to ensure optimal image quality on subjects of interest |
| Thermal Frame Rate | NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz |
| Thermal Image Settings | Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast |
| Visuelle Kamera | |
|---|---|
| Array format | 640 × 480 |
| Focal Length | Visible: 6.5 mm–202 mm Thermal: 8.7 mm |
| Lens Field of View | HFOV: 61.8° - 2.15° VFOV: 36.65° - 1.2° |
| Sensitivity | Visible camera: Color—0.25 Lux (@ (f1.6 AGC On, 30FPS) B/W—0.10 Lux (@ (f1.6 AGC On, 30FPS) Thermal camera: <50 mK@ 25°C |
| Spectral Range | 7.5 μm to 13.5 μm |
| Video und Aufzeichnung | |
|---|---|
| Video Compression | Thermal: One channel of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG |
| Video Image Uniformity Optimization | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Video Thermal AGC Region of Interest [ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
