Discontinued

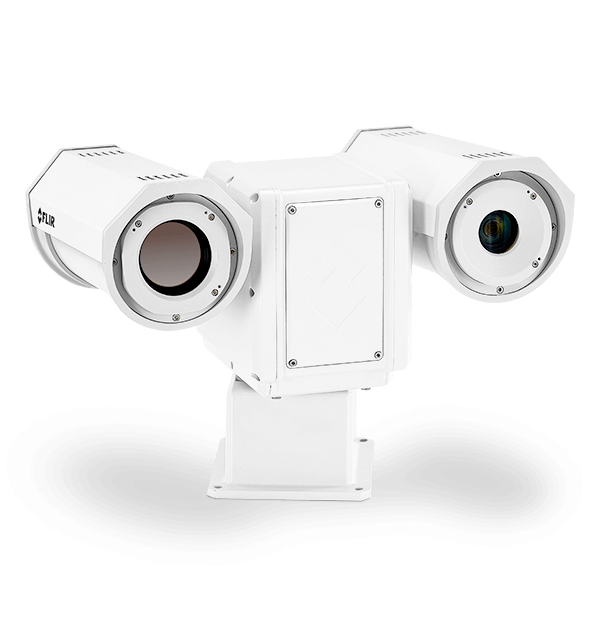

PT-Series HD
HD Visible and Thermal Pan/Tilt
Product Variations
The FLIR PT-Series HD is our most advanced dual-sensor security system, combining a cooled or uncooled 640×480 resolution thermal sensor, a 1080p HD visible-light imaging sensor, and a high speed, precision pan/tilt system. The PT-Series HD integrates easily with FLIR United VMS 8.0, as well as other major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.
Protect Perimeters Anytime, Anywhere
The PT-Series HD's thermal camera offers up to a 14x continuous zoom, while the low light HD camera has a 30x optical zoom.
The weather-resistant housing includes deicing and de-fogging capabilities, plus a changeable thermal payload cassette that significantly reduces maintenance time.
When controlled using FLIR United VMS, enhanced capabilities are enabled, including automated PTZ tracking and fixed camera-target hand off.
Specifications
| Compliance & Certifications | |
|---|---|
| Compliance and Certifications | FCC Part 15 (Subpart B, class A) CE Marked RoHS IP66 ONVIF Profile S WEEE |
| Environmental | |
|---|---|
| De_Icing_Anti_Icing | MIL-STD-810F, Method 521.1; - De-Icing |
| Humidity | 0-95% relative |
| IP Rating [dust and water ingress] | IP66 |
| Operating Temperature Range | -40°C to 70°C cold start |
| Shock | MIL-STD-810F "Transportation" |
| Storage Temperature Range | -55°C to 85°C |
| Vibration | IEC 60068-2-27 |
| General | |
|---|---|
| Detector Type | Long-Life, Uncooled VOx Microbolometer |
| Dimensions [L x W x H] | 13.7", 18.4", 12.8" (348mm, 467mm, 326 mm) |
| Input Voltage | 24 VDC (21-30 VDC) 24 VAC (21-30 VAC) |
| Power Consumption | 24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters) 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters) |
| Thermal Array Format | 640 × 480 |
| Thermal Effective Resolution | 307200.0 |
| Thermal E_Zoom | Continuous E-Zoom to 4× |
| Thermal Focus Range | Athermalized, Focus-Free |
| Thermal Pixel Pitch | 17 µm |
| Thermal Spectral Range | 7.5 µm to 13.5 µm |
| Weight | 36 lbs. (16.4 kg) |
| Zoom | 30X optical zoom with autofocus and 12X digital zoom |
| Measurement & Analysis | |
|---|---|
| Programmable Presets | 256.0 |
| PTZ | |
|---|---|
| Pan Angle_Speed | Continuous 360°; 0.1° to 60°/sec |
| Tilt Angle_Speed | +90° to -90°; 0.1° to 30°/sec |
| System Integration | |
|---|---|
| Ethernet | Yes |
| External Analytics Compatible | Yes |
| Network APIs | FLIR SDK FLIR CGI ONVIF Profile S |
| Serial Control Interfaces | RS-232/-422; Pelco D, Bosch |
| Supported Protocols | IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP |
| Thermal Camera | |
|---|---|
| Array format | 640 × 480 |
| f number | F1.6 to F4.7 |
| Field of view [FOV] | 8.6°×6.6° |
| Focal Length | 4.3 mm (wide) to 129.0 mm (tele) |
| Focal Length, Thermal | 26-105 mm |
| Lens Field of View | 63.7° (wide end) to 2.3° (tele end) |
| Thermal Frame Rate | NTSC: 30 Hz PAL: 25 Hz / 8.3 Hz |
| Thermal Image Settings | Auto AGC, Dynamic Detail Enhancement (DDE), Sensitivity |
| Visible Camera | |
|---|---|
| Array format | 640 × 480 |
| f number | F1.6 to F4.7 |
| Field of view [FOV] | 8.6°×6.6° |
| Focal Length | 4.3 mm (wide) to 129.0 mm (tele) |
| Lens Field of View | 63.7° (wide end) to 2.3° (tele end) |
| Low Light Sensitivity | Color: 0.01 lx (F1.6, AGC on, 1/30s) |
| Noise Reduction | Yes (6 steps) |
| Sensitivity | <35mK @ 25c F# 1.0 |
| Sensor Illumination | Back Light Compensation |
| WDR | 120db |
| Video & Recording | |
|---|---|
| Composite Video NTSC or PAL | Yes: Hybrid IP & Analog |
| Video Compression | Thermal: Two independent channels of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG |
| Video Image Uniformity Optimization | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Video Streaming Resolution | Thermal: QVGA to VGA Visible: VGA to HD |
| Video Thermal AGC Modes | Linear AGC, Histogram AGC, Dynamic Detail Enhancement (DDE), Sensitivity |
| Video Thermal AGC Region of Interest [ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
