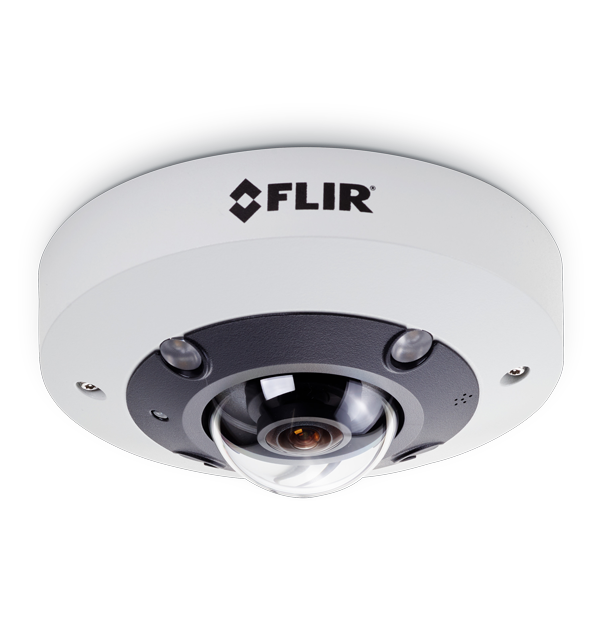

FLIR Quasar™ Hemispheric Mini-Dome AI
12 MP Camera with Edge AI Video Analytics
The FLIR Quasar 12 MP hemispheric mini dome AI camera uses onboard video analytics (VA) powered by advanced artificial intelligence (AI) to provide situational awareness in the most demanding environments where evidential and forensic video is required. With an indoor/outdoor vandal-resistant housing, two-way audio, IR LED illumination, and an I/O interface, the fully featured Quasar 12 MP hemispheric mini dome AI addresses a wide range of applications such as travel/transport, commercial buildings, financial institutions, smart cities, entertainment, property management, government buildings (non-defense), educational facilities, healthcare, and retail.
• Classified Object Type: Person/Vehicle
• Analytics Events Based on AI Engine & Events: Intrusion-Region/Tripwire, Object Counting, Loitering, Stopped Vehicle
• Analytics Events Based on VMD Engine & Events: Abandoned Object, Object Removal, Wrong Direction-Corridor, Camera Sabotage
• Business Intelligence: People Counting on Latitude 9.2.1 and Above
• Analytics Events Based on AI Engine & Events: Intrusion-Region/Tripwire, Object Counting, Loitering, Stopped Vehicle
• Analytics Events Based on VMD Engine & Events: Abandoned Object, Object Removal, Wrong Direction-Corridor, Camera Sabotage
• Business Intelligence: People Counting on Latitude 9.2.1 and Above
The camera supports user-customized views with digital presets independent of complete 360° view recording, providing full-coverage, panoramic video surveillance.
FLIR accessory/mounting ecosystem, and the ability to operate more cameras on the same server all contribute to a lower total cost of ownership. It offers seamless integration with a wide range of video management systems, including United VMS, which brings indoor and outdoor surveillance and perimeter intrusion detection cameras together as part of an end-to-end security solution.
사양
| Compliance & Certifications | |
|---|---|
| MTBF [hrs] | 526,279 (30°C); 149,537 (60°C) |
| ONVIF Compliance | FCC Part 15 (Subpart B, class A, ICES-003), CE Marked, RoHS, RCM, LVD, IEC 60950-22, IEC 62471, IK10, IP66, WEEE, Bump, Vibration, ISTA-3A, CB-62368 |
| Cyber Security | |
|---|---|
| AI Video Analytics | Yes |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, Service Firewall |
| Environmental | |
|---|---|
| Environmental | -10°C to 55°C (14°F to 131°F) without heater -30°C to 55°C (-22°F to 131°F) with heater |
| Humidity | 10% to 90%, No condensation |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| General | |
|---|---|
| Automatic Electronic Shutter [AES] | Auto shutter + max gain off |
| Day_Night Mode | Automatically removable IR-cut filter |
| Digital Slow Shutter [DSS] | 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| Dimensions | 130 mm × 57.8 mm (5.11 in × 2.27 in) |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 12 VDC, 24 VAC, PoE+ IEEE 802.3at |
| Power Consumption | PoE IEEE802.3af: 9.12 W DC 12 V: 9.9 W |
| Weight | 565 g (1.25 lb) |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Shutter priority |
| System Integration | |
|---|---|
| Alarm In | Alarm in x1 |
| Alarm IO | Alarm in x1, Alarm out x1, Terminal Block Power 2 Pin Terminal Block |
| Ethernet [IEEE 8023_8023u] | 10/100,1000 IEEE 802.3, auto sensing 1 × RJ45 |
| Network Protocol | IPV4, IPV6, HTTP, HTTPS, ,UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Chrome, Edge, Internet Explorer, Firefox, Opera |
| Thermal Camera | |
|---|---|
| Minimum Illumination | 5 m, 940 nm |
| Visible Camera | |
|---|---|
| Backlight Compensation | On/Off |
| Lens Type | Fixed focal length: 1.65 mm Field of view: 360° |
| Minimum Illumination | 5 m, 940 nm |
| Noise Reduction | 2DNR, 3DNR, color NR |
| Sensitivity | Color 0.1 lux B/W 0.01 lux |
| Signal to Noise Ratio | ≥50 dB |
| White Balance | Auto/One Push/ATW/Manual |
| Video & Recording | |
|---|---|
| Maximum Performance | Up to 4 individually configurable streams in H.265/H.264/MJPEG |
| Rate Control | CBR, CVBR, VBR |
| SD Card Recording | MicroSDXC up to 2 TB, SD Bus Mode UHS I (not included) |
| Video Bandwidth | Configurable between 64 Kbps and 20480 Kbps |
| Video Compression | Up to 4 individually configurable streams in H.265/H.264/MJPEG |
