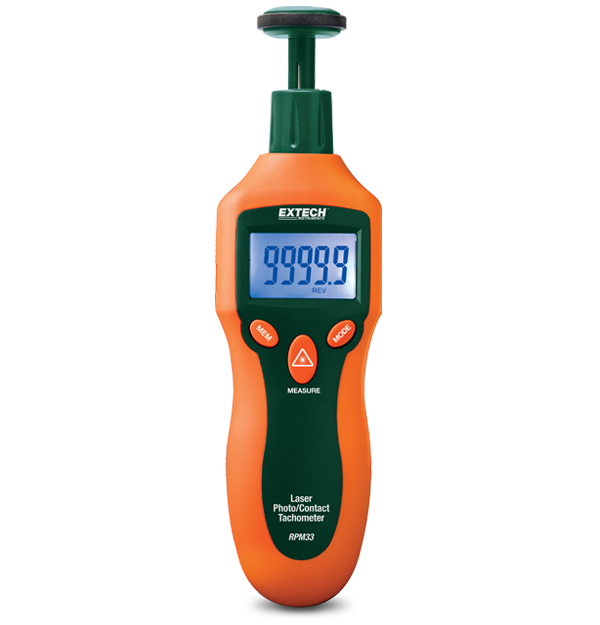

Extech RPM33
Combination Contact/Laser Photo Tachometer
The Extech RPM33 provides both contact (2 to 19,999 rpm) and non-contact (2 to 99,999 rpm) revolutions per minute measurements for enhanced versatility. Safely record laser-guided non-contact RPM measurements from up to 500 mm (1.6 feet) away. The RPM33 displays on the large five-digit backlit LCD. Store and recall 10 data sets in memory with four parameters (measurement, max, min and average). The unit comes with contact wheel for linear surface speed 0 to 1999.9 meters/minute; 0.2 to 6560 feet/minute) or RPM measurements, 9-volt battery, reflective tape, carrying case, and user manual.
사양
| General | |
|---|---|
| Rotation Speed (Contact) | 2 to 20,000rpm |
| Rotation Speed (Contact) Basic Accuracy | 0.05% of reading +1 digit |
| Rotation Speed (Contact) Max Resolution | 0.1rpm (< 10,000 rpm); 1rpm (> 10,000 rpm) |
| Rotation Speed (Strobe) | 2 to 99,999rpm |
| Rotation Speed (Strobe) Basic Accuracy | 0.05% of reading +1 digit |
| Rotation Speed (Strobe) Max Resolution | 0.1rpm (< 10,000 rpm); 1rpm (> 10,000 rpm) |
| Sampling Time (Photo) | 0.5 Sec > 120rpm |
| Surface Length (Contact) | 3.9 to 39370 in, 0.3 to 3280 ft, 0.1 to 1093 yards, 0.1 to 1000 m |
| Surface Length (Contact) Basic Accuracy | 0.05% of reading +1 digit |
| Surface Speed (Contact) | 0 to 78,720 in/min, 0 to 6560 ft/min, 0 to 2186 yards/min, 0 to 2000 m/min |
| Surface Speed (Contact) Basic Accuracy | 0.05% of reading +1 digit |
| Additional Details | |
|---|---|
| Certifications | RPM33-NIST_S: CE, NIST RPM33_S: CE |
| Dimensions | 6.2 × 2.3 × 1.6" (160 × 60 × 42 mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 5.3oz (151g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
