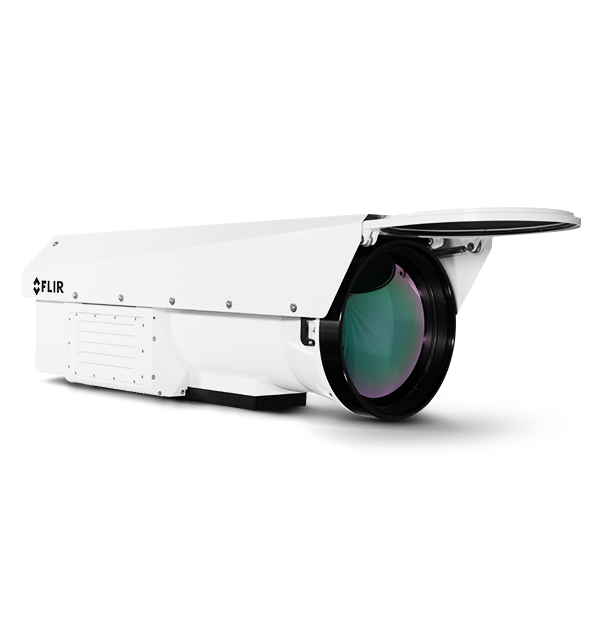

FLIR RS8513-HS InSb
High-Speed MWIR Camera for Range & Science Applications
The FLIR RS8513-HS MWIR infrared camera system is a high-performance thermal camera and infrared telescope combined in a single weatherproof housing, specifically designed for long-range tracking and measurement applications including military range, aerospace, and outdoor research. Built around a high-resolution 1280 × 1024 midwave indium antimonide detector with the ability to deliver data up to 180 frames per second, the RS8513-HS InSb provides 24% more pixels and a 46% faster frame speed than the previous model. Multiple simultaneous data and video output options allow the camera to be easily integrated into most data acquisition systems.
This high-performance infrared camera features a 10X continuous zoom lens with TSPI-accurate time stamping of images and metadata all in a single weatherproof housing
Easily capture high-speed thermal data in full HD resolution on long-range and high-temperature targets with the 1.3 megapixel MWIR indium antimonide detector and internal warm filter wheel
View, record, and analyze data easily in FLIR Research Studio using the available 10 GigE, or CoaxPress digital data connection options while having full control over the advanced triggering and synchronization capabilities
사양
| Highlighted | |
|---|---|
| Resolution | 1280 × 1024 |
| Detector Pitch | 12 μm |
| Spectral Range | 3.0–5.0 μm |
| Detector Type | Indium antimonide |
| Camera f_number | f/5 |
| Thermal Sensitivity_NETD | 25 mK typical |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 181 Hz |
| Integration Time | 270 ns to ~full frame |
| ND Filter Wheel | 4-position motorized filter wheel, standard 1-inch ND filters must be factory installed |
| Focus | Motorized FOV/focus |
| Imaging & Optical | |
|---|---|
| Analog Overlay | Customizable (ability to toggle off) |
| Camera f_number | f/5 |
| Detector Pitch | 12 μm |
| Detector Type | Indium antimonide |
| Digital Zoom | 1x, Auto (best fit) |
| Focus | Motorized FOV/focus |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 181 Hz |
| Image Time Stamp | Internal precision timestamp. IRIG-B AM decoder, TSPI accurate |
| Integration Time | 270 ns to ~full frame |
| Lens | 120 mm to 1200 mm zoom (metric, low-latency metadata) |
| Lens Cover | Optional, motorized |
| ND Filter Wheel | 4-position motorized filter wheel, standard 1-inch ND filters must be factory installed |
| Operability | >99.5% (99.9% typical) |
| Palette | Selectable 8-bit |
| Pixel Clock | 355 mHz |
| Radiometric Data Streaming | Simultaneous 10 Gigabit Ethernet (GigE Vision) CoaXPress (CXP 2.0) Single link @ 10 GBPS or Dual Link @ 5 GBPS |
| Readout Modes | Asynchronous integrate while read; Asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 1280 × 1024 |
| Sensor Cooling | Closed cycle linear |
| Spectral Range | 3.0–5.0 μm |
| Standard Video | HD-SDI |
| Subwindow Modes | Flexible windowing down to 64 × 4 (steps of 64 columns, 4 rows) |
| Thermal Sensitivity_NETD | 25 mK typical |
| Video Modes | HD-SDI: 720p@50/59.9 Hz, 1080p@25/29.9 Hz, 1080p@60 Hz, 50 Hz |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Manual, Linear, Plateau Equalization, ROI, DDE |
| Camera size [L x W x H] | 889 × 308 × 312 mm (35 × 12.125 × 12.3 in) |
| Communication & Data Storage | |
|---|---|
| Command and Control | 10 Gigabit Ethernet, RS-232 Serial, CoaXPress |
| Synchronization Modes | Sync In, Sync Out, Tri-Level, Video |
| Trigger Mode[s] | Trigger In, Software generated, Time generated |
| General | |
|---|---|
| Weight | Approximately 43.2 kg (95 lbs) without motorized lens cover |
| Power | |
|---|---|
| Power | 24 V nominal, 20-28 V acceptable |
| Environmental & Certifications | |
|---|---|
| Chassis IP Rating | IP65 |
| Mounting | 15 x 3/8”-16 tapped holes |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F ) |
