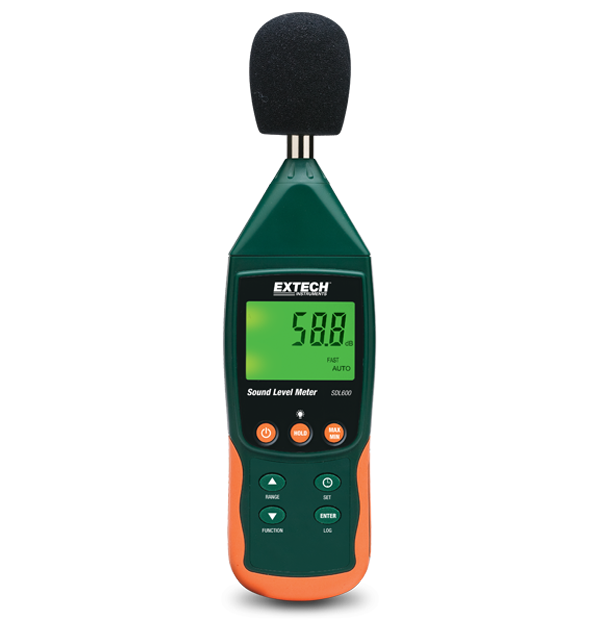

The SDL600 records data on an SD card in Excel format. High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards. 30 to 130dB measurement range. Auto or Manual ranging. AC analog output for connection to an analyzer or recorder. Large backlit LCD display. Stores 99 readings manually and 20M readings via 2G SD card. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. User programmable sampling rate from 1 to 3600 seconds. Featuring Min/Max, Data Hold, and Auto Power Off functions. Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case.
사양
| General | |
|---|---|
| Analog Output | AC |
| Frequency Bandwidth | 31.5 to 8000Hz |
| Memory | 20M data records using 2G SD card |
| Response Time | Fast/Slow |
| Sound Range (dB) | 30 to 130dB (3 ranges) |
| Sound Range (dB) Basic Accuracy | ±1.4dB |
| Weighting | A,C |
| Additional Details | |
|---|---|
| Certifications | SDL600-NIST_S: CE, NIST SDL600_S: CE |
| Dimensions | 9.8 × 2.9 × 1.9" (250 × 73 × 48mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 18.3oz (520g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
