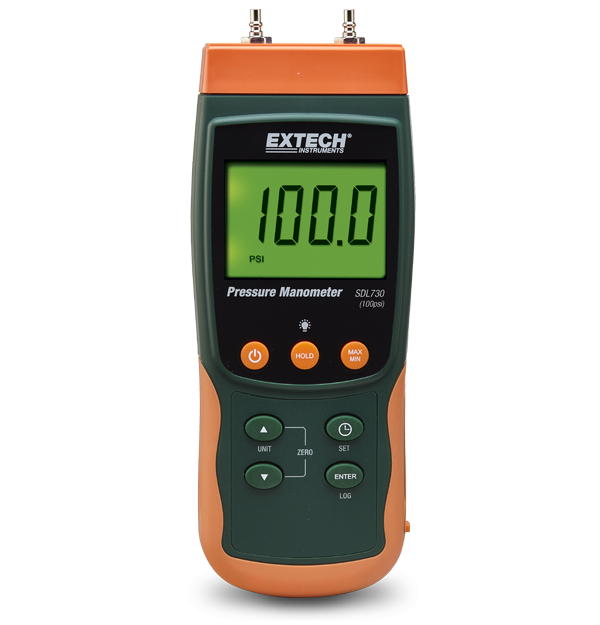

Measure and datalog high-range 101.5psi (7000mbar) pressure readings. Dual differential inputs with internal sensors. Manually store up to 99 readings, while SD memory card (included) allows continuous datalogging and readings can easily be exported to an Excel® format for further analysis.
사양
| General | |
|---|---|
| Pressure (atmosphere) | 6.905atm |
| Pressure (atmosphere) Basic Accuracy | ±2% full scale |
| Pressure (atmosphere) Max Resolution | 0.005atm |
| Pressure (hPa) | 7000hPa |
| Pressure (hPa) Basic Accuracy | ±2% full scale |
| Pressure (hPa) Max Resolution | 5hPa |
| Pressure (inH2O) | 2810inH₂O |
| Pressure (inH2O) Basic Accuracy | ±2% full scale |
| Pressure (inH2O) Max Resolution | 2inH₂O |
| Pressure (inHg) | 206.7inHg |
| Pressure (inHg) Basic Accuracy | ±2% full scale |
| Pressure (inHg) Max Resolution | 0.1inHg |
| Pressure (kgcm²) | 7.135kg/cm² |
| Pressure (kgcm²) Basic Accuracy | ±2% full scale |
| Pressure (kgcm²) Max Resolution | 0.005kg/cm² |
| Pressure (kPa) | 700kPa |
| Pressure (kPa) Basic Accuracy | ±1% full scale |
| Pressure (kPa) Max Resolution | 0.5kPa |
| Pressure (mbar) | 7000mbar |
| Pressure (mbar) Basic Accuracy | ±2% full scale |
| Pressure (mbar) Max Resolution | 5mbar |
| Pressure (mH₂O) | 71.35mH₂O |
| Pressure (mH₂O) Basic Accuracy | ±2% full scale |
| Pressure (mH₂O) Max Resolution | 0.05mH₂O |
| Pressure (mmHg) | 5250mmHg |
| Pressure (mmHg) Basic Accuracy | ±2% full scale |
| Pressure (mmHg) Max Resolution | 5mmHg |
| Pressure (psi) | 101.5psi |
| Pressure (psi) Basic Accuracy | ±2% full scale |
| Pressure (psi) Max Resolution | 0.05psi |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.5 × 2.7 × 1.8" (190 × 68 × 45 mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 0.59 lbs (265g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
