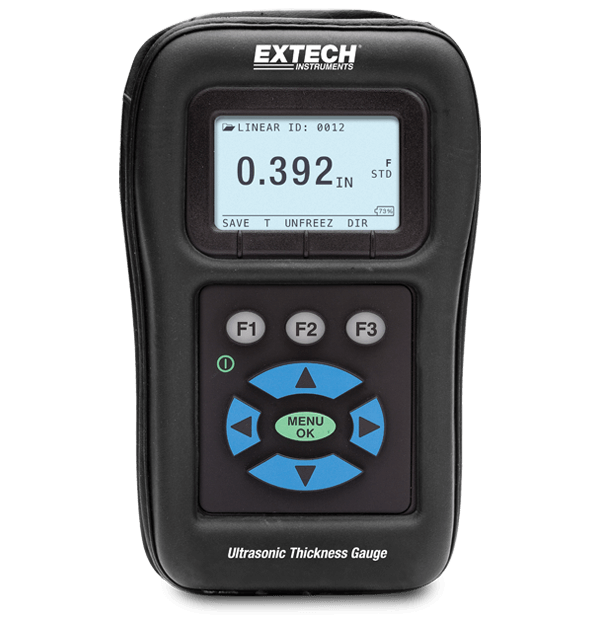

Extech TKG150
Digital Ultrasonic Thickness Gauge/Datalogger
The Extech TKG150 is a Digital Ultrasonic Thickness Gauge/Data logger. The compact, rugged meter allows for non-destructive thickness measurements. It offers thickness gauges designed in compact, handheld, rugged housing which is ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. Complete with protective holster, 2 oz bottle of coolant, 2 AA batteries, 5 MHz transducer, hard carrying case, USB cable, and exporter software.
사양
| General | |
|---|---|
| Alarm | Audible beeping; illuminae flashing display and keypad; and vibration feedback |
| B-Scan (Cross Section) | Displays a visual cross section of inspection area with no correlation to distance |
| Differential Mode | Displays the difference from the actual thickness measurement and a user entered reference value |
| Echo to Echo | Measure the metal thickness only (paint and coatings do not affect base material thickness value) |
| Gain | Low, Standard, High |
| Material Velocity Calibration | 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS) |
| Memory | Stores 50k readings (expandable to 100k) and 5,000 waveforms |
| Steel Thickness | 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm) |
| Velocity Mode | Displays acoustic sound speed to measure thickness of unknown materials |
| Additional Details | |
|---|---|
| Certifications | CE |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
