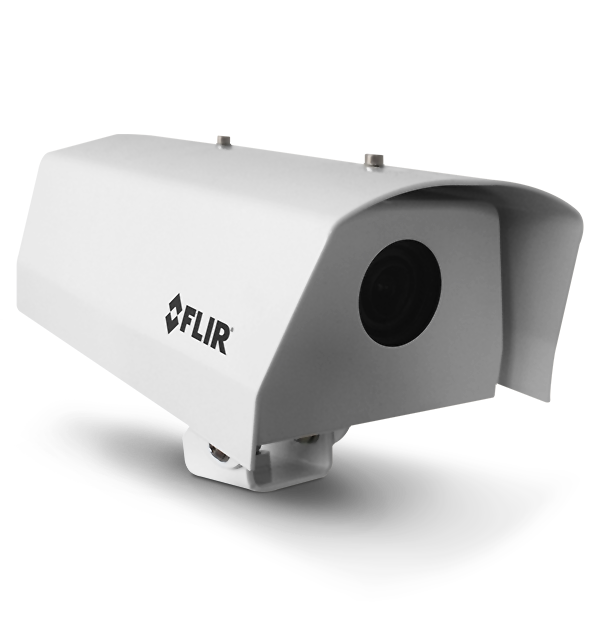

TrafiBot3
Automatic Incident Detection & Traffic Data Collection
The FLIR TrafiBot3 integrated camera combines Full HD visual imaging technology with advanced video analytics. FLIR’s traffic video analytics have proven their effectiveness worldwide along highways, bridges and inside tunnels. The FLIR TrafiBot3 has advanced processing that generates traffic data and incident detection information and thus supports traffic operators with alerts on stopped vehicles, wrong-way drivers, pedestrians, lost cargo, smoke, and traffic flow data.
The FLIR TrafiBot3 brings unrivaled image quality in full HD resolution with superior low light performance and wide dynamic range.
Provides critical traffic anomaly detection and traffic data collection.
Extremely compact, rugged and smart design made for quick and easy installation in harsh environments.
Specifications
| Communications | |
|---|---|
| Interfaces | 100/1000 Mbps, auto negotiating |
| Supported Protocols | IPv4, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, UPnP, IGMP, SNMP, QoS, ONVIF, TLS1.2, IEEE802.1x |
| Electrical | |
|---|---|
| Input Voltage | 24 V AC/DC PoE IEEE802.3af or IEEE802.3at type I |
| Power Consumption | 7 W nominal; 12 W max |
| Environmental | |
|---|---|
| Housing material | Stainless steel 316L |
| Humidity | 5% to 100% |
| Operating Temperature Range | Continuous: -30°C to +55°C (-22°F to 131°F) (sheltered, air temp) -34°C to +74°C (-29°F to 165°F) per Nema TS-2 |
| Imaging & Optical | |
|---|---|
| Effective Pixels | 1920 × 1080, 2.1 MP |
| Electronic Shutter Speed | 1/25 to 1/30000 s |
| Focal Length | 5.1 mm to 51 mm (0.2 in to 2 in) |
| Horizontal Field of View [HFOV] | 57°(W) to 6.2°(N) |
| Image Sensor | 1/3” progressive scan CMOS |
| Image Stabilization | Yes - digital |
| Optical Zoom | 10× motorized |
| Shutter WDR | 120 dB |
| Mechanical | |
|---|---|
| Mounting | Swivel, ceiling mount, and wall/pole mount options |
