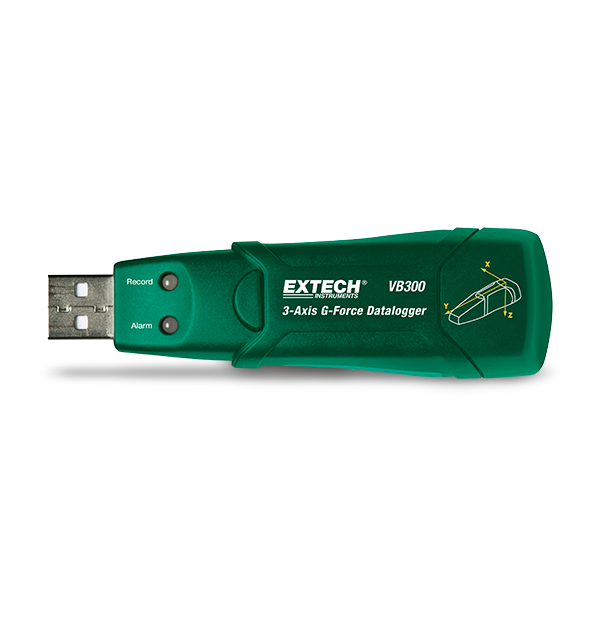

The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.
사양
| General | |
|---|---|
| Acceleration | ±18g |
| Acceleration Basic Accuracy | ±0.5g |
| Acceleration Max Resolution | 0.00625g |
| Data Format | Time stamped peak acceleration, average and peak vector sum |
| Datalogging Interval | 500 ms to 24 hours (software) |
| Frequency Bandwidth | 0 to 60Hz |
| Memory | 4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples |
| Sampling Rate | 200Hz |
| Sensor Type | MEMS semiconductor |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.7 × 1.1 × 0.8" (95 × 28 × 21mm) |
| Power | 1 × 3.6V Lithium battery |
| Warranty | 2 years |
| Weight | 1oz (20g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
