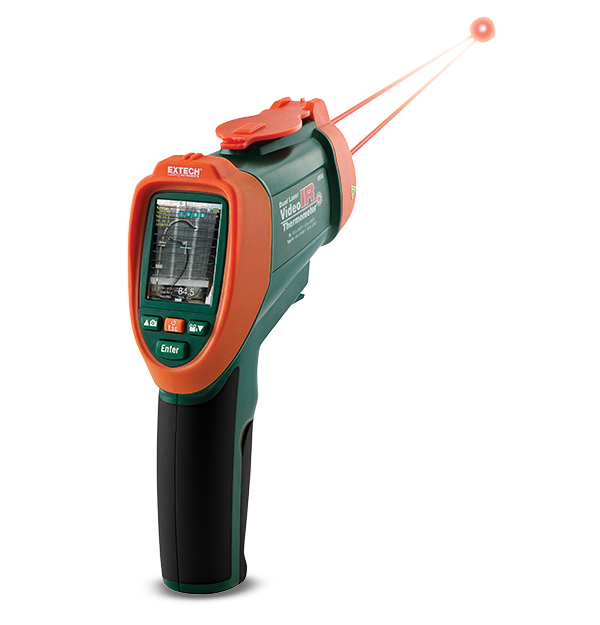

The Extech VIR50 is a 2200°C (3992°F) Dual Laser Video IR Thermometer which features a 5.6 cm (2.2 in) color TFT LCD display and built-in VGA (640 x 480) camera. It includes a MicroSD card for capturing images (JPEG) and video (3GP) for viewing on your PC. Dual lasers indicate the ideal measuring distance (approximately 127 cm) where the two laser points converge to a 2.5 cm (1 in) target spot. Comes with microSD card, general-purpose Type-K bead wire probe, USB cable, rechargeable 3.7 V battery, carrying case, and user manual.
사양
| General | |
|---|---|
| Camera | 640 x 480 pixels |
| Distance to Target Ratio | 50:1 |
| Emissivity | 0.10 to 1.00, adjustable |
| Relative Humidity | 0 to 100% |
| Repeatability | ±0.5% or 1.8 °F/1 °C |
| Targeting | dual laser |
| Temperature (Air) | 32 to 122 °F (0 to 50 °C) |
| Temperature (Contact) | -58 to 2498 °F (-50 to 1370 °C) |
| Temperature (IR) Basic Accuracy | -58 to 3992 °F (-50 to 2200 °C) |
| Temperature (IR) Max Resolution | ±(1% of reading + 4 °F/2 °C) (31 to 212 °F) |
| Temperature (RTD) | 0.1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.4 × 6.0 × 2.2" (189 × 152 × 57mm) |
| Display | 2.2" TFT LCD, 320 x 240 pixels |
| Power | 1 × 3.7V rechargeable battery |
| Warranty | 3 years |
| Weight | 17.4oz (494g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
