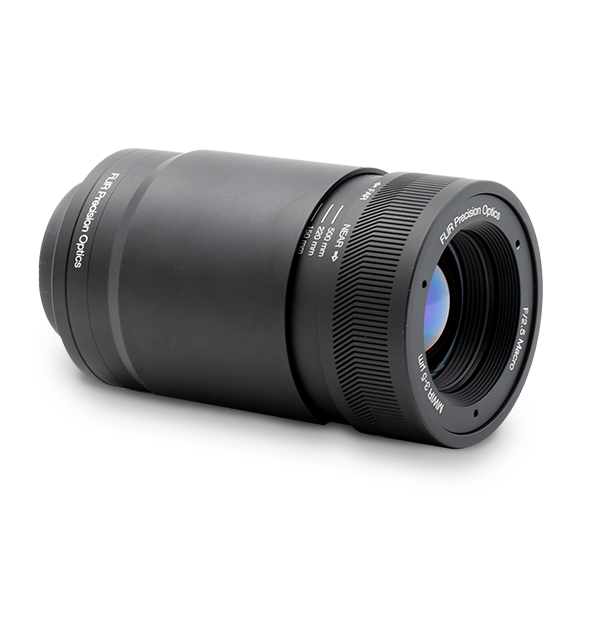

Macro 3-5 micron, f/2.5 MWIR FPO Manual Bayonet Lens (T300385)

Macro 3-5 µm, f/2.5 MWIR FPO Manual Bayonet Lens for FLIR R&D/Science cameras, including A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR, and X85xx MWIR.

Specifications

Imaging & Optical
Diameter 76.5 mm (3.01 in)
Distortion < 2%
Focal Length 27–40 mm (reimaging)
Focus Range ~110 mm to ~600 mm
F_number 2.5
Hyperfocal Distance N/A
Length 114.6–130.5 mm (4.51–5.14 in)
Spectral Band 3 - 5 µm
Environmental & Certifications
Operating Temperature Range -20°C to 50°C (-4° to 122°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
General
Average Transmission > 85%
Weight 0.895 kg (1.97 lb)

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
