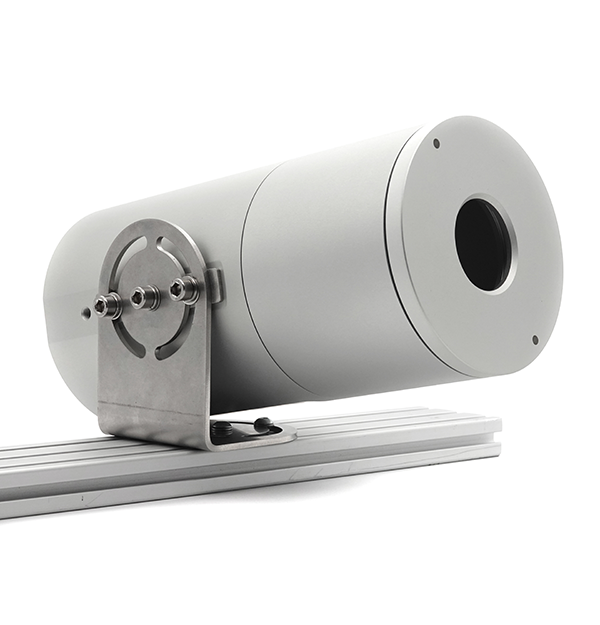

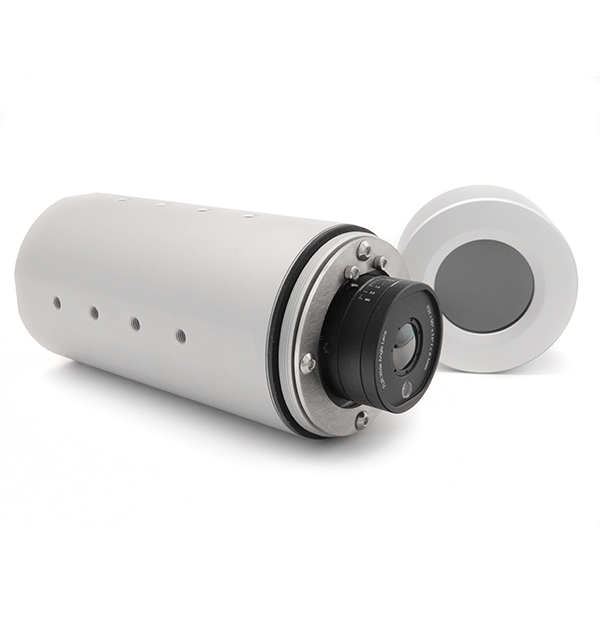

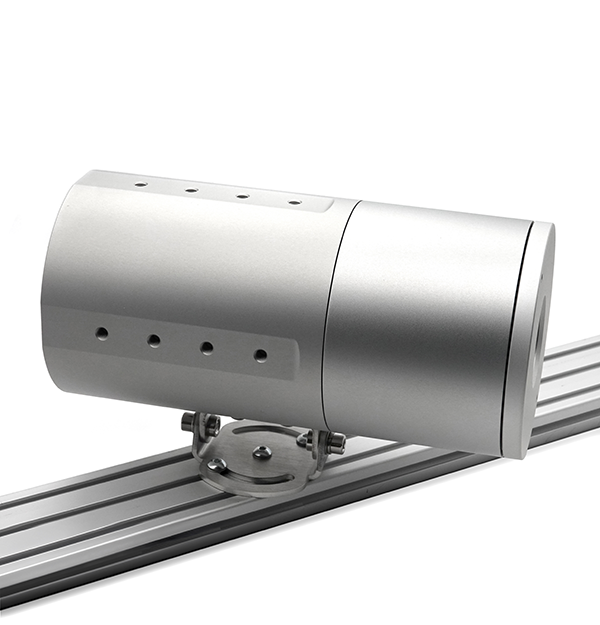

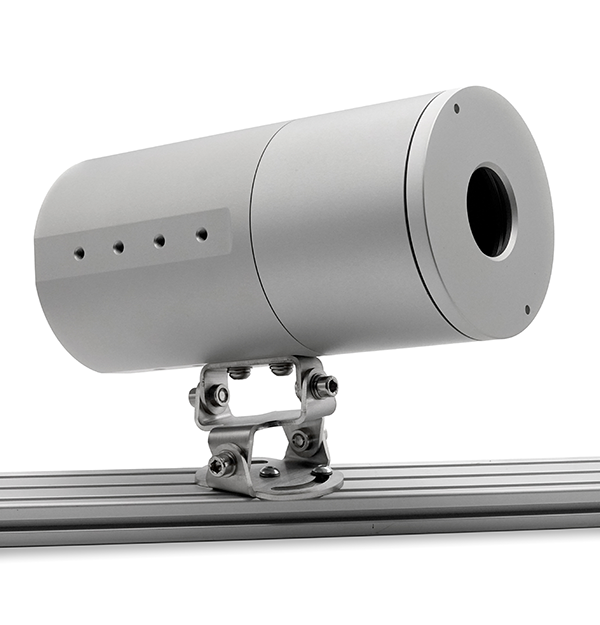

IP67 Housing for Axx Series (T912301)
Protective housing for Flir A40/A50/A70 models
This aluminum, IP67-rated protective housing is specifically designed for Flir A40/A50/A70 thermal cameras. Camera accuracy within the protective housing remains within standard specifications due to Flir's proprietary radiometric formulas. Compatible accessories include cooling block/jacket, sun shield, and numerous mounting options.
Note: the chalcogenide window blocks the visual camera.
Equivalent optics, verified
88–90% transmission across the 7–14 µm band, with radiometric accuracy unchanged. Confirmed in testing against the germanium reference window.
Stable as temperatures climb
A low thermo-optic coefficient keeps optical properties consistent — the same glass automotive thermal cameras rely on, through thermal cycles well beyond this housing's operating range.
Hardened like before
The same AR + DLC diamond-like-carbon coating as the previous window, meeting MIL-spec abrasion, humidity, and salt-spray standards.
Supply you can plan on
Moves the window off constrained germanium supply—protecting availability and the delivery dates behind your camera order.
Specifications
| Imaging & Optical | |
|---|---|
| Color | Silver |
| Compatible cameras | FLIR A50/A70 |
| Environmental & Certifications | |
|---|---|
| Encapsulation | IP67 |
| Mounting | 4x sides, 4x m6, cc 25 mm, depth 5 mm |
| General | |
|---|---|
| Material | Aluminum, 6000-series |
| Size [L × D] | 187.2 × 80.0 mm (7.37 × 3.15 in) |
| Weight | 1.3 kg (2.87 lbs) |
Accessories
Resources & Support
Datasheet
FLIR Axx IP67/IP69k Housing Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
