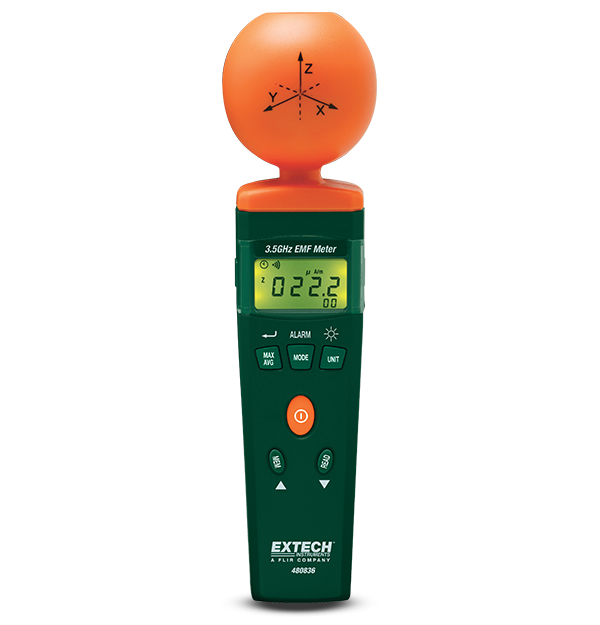

This RF EMF Strength Meter monitors high frequency radiation in the 50MHz to 3.5GHz range. Ideal for mobile phones, cell phones, base stations, locating RF hotspots, wireless network (Wi-Fi) RF detection, RF"Electrosmog" detection, and microwave leakage. It features non-directional measurement with 3-channel (triaxial) measurement probe, Max Hold and Average functions, and manual store/recall of up to 99 data sets. In addition, there is an audible alarm with a user-selectable threshold. The meter comes complete with a 9V battery and carrying case.
Specifications
| General | |
|---|---|
| Alarm | Audible with adjustable threshold with On/Off |
| Frequency Bandwidth | 50MHz to 3.5GHz (Measurement optimized for 900MHz, 1800MHz and 2.7GHz) |
| Memory | Manual store/recall of 99 sets |
| RF Electromagnetic Field | 20mV/m to 108.0V/m, 53µA/m to 286.4mA/m, 1µW/m² to 30.93W/m², 0µW/cm² to 3.093mW/cm² |
| RF Electromagnetic Field Max Resolution | 0.1mVm, 0.1mA/m, 0.1mW/m², 0.001mW/cm² |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 9.3 × 2.4 × 2.4" (237 × 60 × 60mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 7oz (200g) |
Resources & Support
User Manual
Extech 480836 User Manual GB
Datasheet
Extech 480836 Datasheet
User Manual
Extech 480836 User Manual
