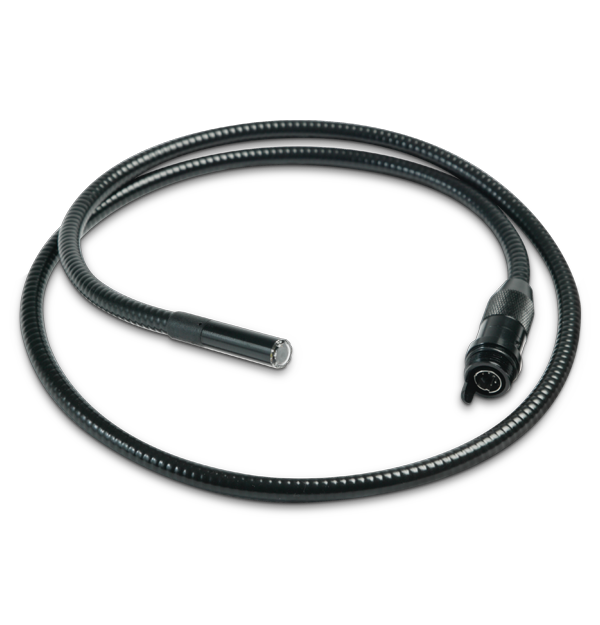

Extech BR-9CAM
Replacement Borescope Probe with 9mm Camera
The Extech BR-9CAM is a 9 mm Borescope Camera head with cable for the borescope models BR100, BR150, BR200 and BR250. It has a 1 m (39 in) cable length with a flexible gooseneck that retains configured shape, 45° viewing angle, 15 cm to 25 cm (5.9in to 9.8 in) focus distance, and a 6 cm (2.36 in) minimum bend radius. Waterproof (IP67) with 4 built-in LEDs.
Specifications
| General | |
|---|---|
| Diameter | 9mm (0.35") |
| Field of view [FOV] | 45° |
| Focus Distance | 8 to 15cm (3.2 to 5.9") |
| Length | 1m (3.3') |
| Resolution | 712 × 486 pixels |
| Additional Details | |
|---|---|
| Certifications | CE |
| Warranty | 1/2 year |
Resources & Support
Datasheet
Extech BR-xCAM Datasheet
User Manual
Extech BR-9CAM User Manual
