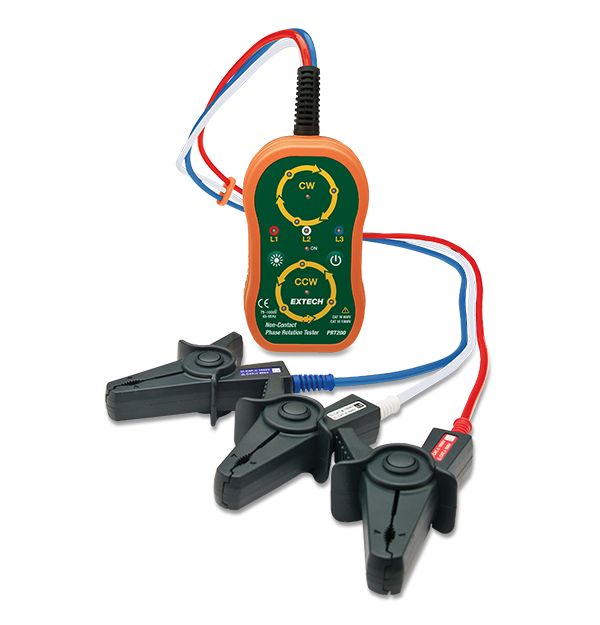

Extech PRT200

Non-Contact Phase Sequence Tester

$279.00

The Extech PRT200 is a non-contact phase sequence tester with a 75 to 1000 VAC input voltage and 45 to 65 Hz frequency range. This tester features LEDs that indicate whether each phase is live and that phase's orientation; a beeper sounds intermittently when correct phase is detected and continuously if phase is reversed. An adjustable Hi/Lo LED brightness switch makes it easy to take measurements in dimly lit areas or sunlight, while the CAT IV 600 Volt safety rating plus fully-insulated, wide-jaw alligator clips mean it's appropriate for industrial applications. The PRT200 comes complete with a year warranty, three built-in 30 in. test leads with large color-coded alligator clips, 4 AA batteries, and a pouch case.

Specifications

General
AC Voltage 75 to 1000VAC
Frequency 45 to 65Hz
Max Conductor Size 33mm (1.3") diameter
Measurement Principle Static induction
Additional Details
Certifications CE
Dimensions 4.7 × 2.7 × 1.5" (118 × 69 × 38mm)
Power 4 × AA (1.5V) batteries
Safety Category CATIV - 600V
Warranty 2 years
Weight 13oz (370g)

Resources & Support

Datasheet

Extech PRT200 Datasheet

User Manual

Extech PRT200 User Manual

User Manual

Extech PRT200 User Manual GB

Certification

Extech PRT200 Declaration of Conformity
