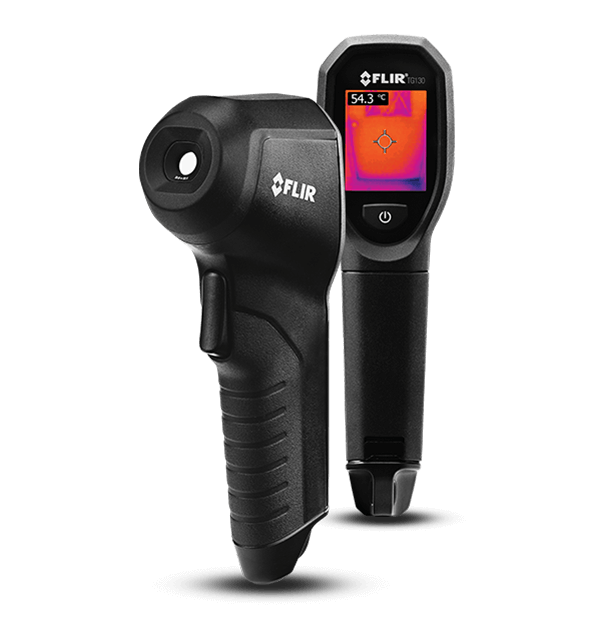

Flir TG130
Entry Level Spot Thermal Camera
This product is discontinued.
We recommend the TG165-X as a great replacement.
Need support with the Flir TG130? Check out our support resources below.
Save money on heating and cooling energy costs with the FLIR TG130 Spot Thermal Camera. Quickly find and troubleshoot temperature-related issues around the house and solve problems fast.
Specifications
| Highlighted | |
|---|---|
| Object Temperature Range | -10°C to 150°C (14°F to 302°F) |
| Field of view (FOV) | 55° × 43° |
| Emissivity Correction | No |
| Color Palettes | Iron |
| Display | 1.8 in. TFT LCD |
| Imaging & Optical | |
|---|---|
| Color Palettes | Iron |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view (FOV) | 55° × 43° |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Minimum Focus Distance | 0.1 m (4 in) |
| Spectral Range | 8–14 µm |
| Measurement & Analysis | |
|---|---|
| Camera size (L x W x H) | 169 mm × 113 mm × 48 mm (6.6 in × 4.4 in × 1.9 in) |
| Camera weight incl battery | 0.21 kg (0.46 lb) |
| Center spot | Yes |
| Emissivity Correction | No |
| Object Temperature Range | -10°C to 150°C (14°F to 302°F) |
| Temperature Unit | Selectable by switch; °C or °F |
| User Interface | |
|---|---|
| Display | 1.8 in. TFT LCD |
| Power | |
|---|---|
| Battery operating time | 4 hours continuous scanning |
| Battery type | 3 × AAA (LR03) |
| Power Management | Fixed; 5 min. |
| General | |
|---|---|
| Includes | Imaging IR spot thermal camera, Printed documentation, Lanyard, 3 × AAA (LR03) batteries |
| Environmental & Certifications | |
|---|---|
| Certifications | CE/PSE/EN/UL/CSA 60950-1 |
| Drop test | Designed for 2 m (6.6 ft) |
| Encapsulation | IP 40 (IEC 60529) |
| Operating Temperature Range | 10°C to 45°C (14°F to 113°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
Resources & Support
Datasheet
TG130 Datasheet
Warranty
FLIR Global Uncooled Thermal Camera 2-10 Limited Warranty
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
