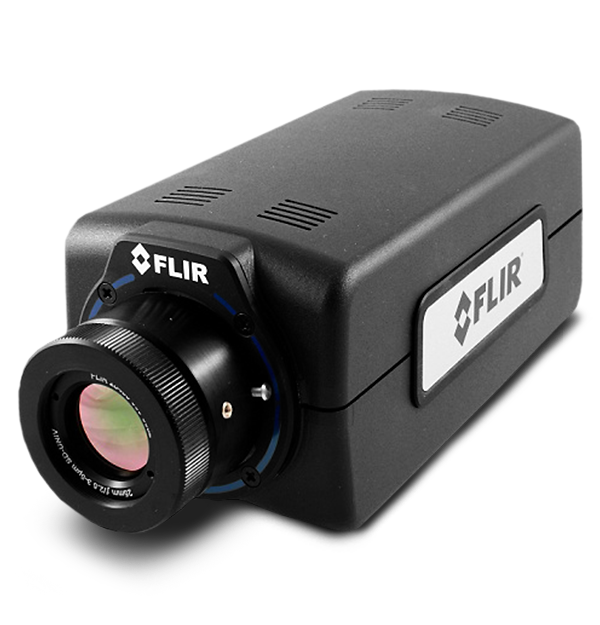

FLIR A6750 SLS
Longwave Infrared Thermal Camera
Product Variations
The FLIR A6750 SLS longwave camera is the ideal choice for high-speed thermal events and fast moving targets. It offers extremely short integration times and windowed frame rates above 4,000 Hz, so you can freeze motion or achieve accurate temperature measurements on moving subjects. The 327,680 (640 x 512) pixel IR resolution and high sensitivity produce crisp imagery, well suited to electronics inspections, scientific research, and more.
Affordable, Flexible Solution For Lwir Thermal Analysis
FLIR A6750 SLS capture all pixels from a scene simultaneously in under 190 µs with full frame-rates of 125 Hz—both crucial to imaging fast-moving objects.
Gigabit Ethernet and analog video are simultaneously active yet independently controlled allowing greater flexibility for recording and display purposes.
Add custom cold filters for spectral detection to image through glass, measure the temperature of thin film plastics, and more.
사양
| Highlighted | |
|---|---|
| Resolution | 640 × 512 |
| Pixel Size [Square] | 15 µm |
| Spectral Range | 7.5 µm (lower), 10–11µm (upper) |
| Detector Type | Strained-Layer Superlattice |
| Camera f-number | A6751 SLS: f/2.5 A6753 SLS: f/4.0 |
| Dynamic Range | 14-bit |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 125 Hz |
| Integration Time | 480 ns to ~full frame |
| Standard Temperature Range [with band matched optics] | -20°C to 350°C (-4°F to 662°F) |
| Optional Temperature Range [with band matched optics] | 250°C to 2000°C/482°F to 3632°F (ND1); 500°C to 3000°C/932°F to 5432°F (ND2) |
| Filter Holder [Warm] | Behind lens mount for standard 1 inch diameter filters |
| Focus | Manual |
| Imaging & Optical | |
|---|---|
| Available Lenses | 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Camera f-number | A6751 SLS: f/2.5 A6753 SLS: f/4.0 |
| Close-up Lenses/Microscopes | 1X |
| Detector Type | Strained-Layer Superlattice |
| Dynamic Range | 14-bit |
| Filter Holder [Warm] | Behind lens mount for standard 1 inch diameter filters |
| Focus | Manual |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 125 Hz |
| Image Time Stamp | Yes |
| Integration Time | 480 ns to ~full frame |
| Lens Interface | FLIR FPO (4-tab bayonet) |
| NEI [Typical] | N/A |
| Noise Floor [Typical] | N/A |
| On Camera Image Storage | None |
| Operability | ≥98% (≥99% typical) |
| Overlay | Fixed configuration, can be turned off |
| Palette | Selectable 8-bit |
| Pixel Clock | 50 MHz |
| Pixel Size [Square] | 15 µm |
| Radiometric Data Streaming | Gigabit Ethernet (GigE Vision) |
| Readout Modes | Asynchronous integrate while read; asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 640 × 512 |
| Sensor Cooling | Closed-cycle rotary |
| Spectral Range | 7.5 µm (lower), 10–11µm (upper) |
| Standard Video | SDI |
| Standard Video Zoom | Automatic, variable |
| Subwindow Modes | Flexible windowing down to 16 × 4 (steps of 16 columns, 4 rows) |
| Thermal Sensitivity_NETD [typical] | ≤45 mK (≤40 mK typical) |
| Video Modes | SDI: 720p@50/59.9, 1080p@25/29.9 |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C (≤212°F) ±2°C (±3.6°F) accuracy (±1°C/1.8°F typical), >100°C ±2% of reading (±1% typical) |
| Ambient Drift Compensation [with factory cal] | Yes |
| Automatic Gain Control | Manual, Linear, Plateau equalization, DDE |
| Optional Temperature Range [with band matched optics] | 250°C to 2000°C/482°F to 3632°F (ND1); 500°C to 3000°C/932°F to 5432°F (ND2) |
| Standard Temperature Range [with band matched optics] | -20°C to 350°C (-4°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GenICam (GigE), RS-232 |
| Synchronization Modes | Sync In, Sync Out |
| General | |
|---|---|
| Size [L x W x H ] w/o Lens | 226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in.) |
| Weight [without lens] | 2.3 kg (5 lbs) |
| Power | |
|---|---|
| Power | 24 VDC (<24 W steady state) |
| Environmental & Certifications | |
|---|---|
| Mounting | 2 × ¼" -20 tapped holes, 1 × 3/8"-16 tapped hole, 4 × 10-24 tapped holes |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
액세서리
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
- FLIR A67xx Camera Filter Holder, Behind The lens, 1" Diameter, 4-tab FPO Manual Bayonet (4205217)
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
