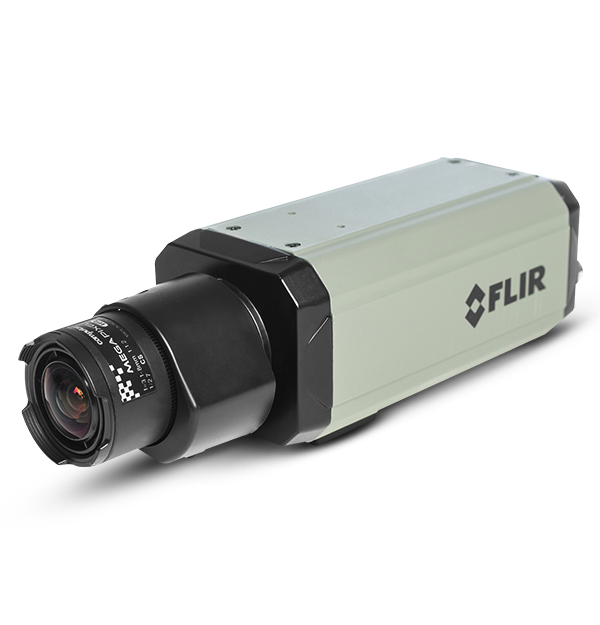

TrafiBot HD
AID box camera
FLIR TrafiBot HD combines field-proven video detection algorithms with advanced camera optics and powerful processing technology in a single box camera. TrafiBot HD (with 1920 × 1080 resolution) provides superior image quality, embedded AID analytics, as well as multi-stream encoding. TrafiBot HD’s advanced processing unit generates traffic data and incident detection information and thus supports traffic operators with alerts on stopped vehicles, wrong-way drivers, pedestrians, lost cargo, smoke, and traffic flow data.
사양
| Communications | |
|---|---|
| Audio | 1 full duplex stereo Optional: 24 bit audio transmission |
| Communication Standards | ONVIF profile S, NTCIP, SNMP |
| Data | RS232 or RS422/485 |
| Digital Inputs | 2 |
| Digital Outputs | 2 |
| Encoding Format | H.264, MJPEG |
| LAN Connector Type | 10/100 Mbps RJ45 or SFP for fibre or IP over coax (ECO) |
| Maximum Streams | Unicast and/or multicast, max 20 |
| Multi-Streaming | Dual streaming: H.264 (HP-MP) or MJPEG |
| PTZ control | Yes |
| Video Input | 1/ 2.8" CMOS |
| Electrical | |
|---|---|
| Maximum resolution | Full HD (1920x1080) @ 30 fps |
| MTBF | > 300,000 hrs |
| Power | 7W |
| Stand_Alone Form | 12V DC or 24V AC or 802.3af PoE |
| Environmental | |
|---|---|
| Operating Temperature | -30° to +50°C (-22° to +122°F) |
| Mechanical | |
|---|---|
| Boards per Rack | N/A |
| Weight | 390 g |
| System Overview | |
|---|---|
| AID | AID Customizable overlay Video motion detection Image monitor (quality measurement) Tamper detection Privacy masks |
| Boards per Rack | N/A |
| Description | Full HD IP camera with embedded AID |
