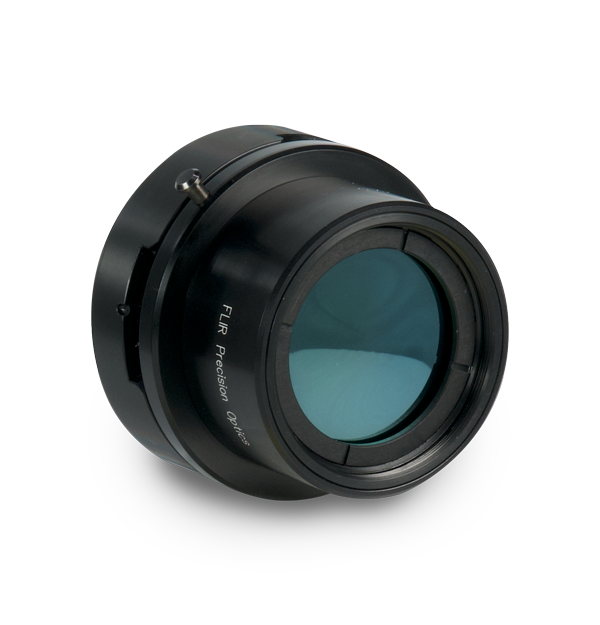

1x Mikroskop, 7,5-12 μm, f/2,5 LWIR FPO manuelles Objektivbajonett (4213642)

1x Mikroskop, 7,5-12 μm, f/2,5 LWIR FPO manuelles Objektivbajonett für FLIR F&E/Wissenschaftskameras, einschließlich A67xx SLS, A85xx SLS, X69xx SLS und X85xx SLS

Technische Daten

Bildgebung und optische Daten
Brennweite 1 Mikroskop
Durchmesser 52 mm (2,04 Zoll)
Fokus Manuell
Fokusbereich 0,06 m bis unendlich
F_number f/2.5
Hyperfokale Distanz
Länge 31 mm (1,21 Zoll)
Objektentfernung 30 mm (1,18 Zoll)
Spektralband 7,5–12 μm
Tiefenschärfe 100 μm (f/2,5 Kamera) oder 250 μm (f/4 Kamera)
Verzerrung 0,20 %
Kommunikation und Datenspeicher
Schnittstelle FPO manueller Fokus, Bajonett mit 4 Haltelaschen
Umgebungsfaktoren und Zertifizierungen
Betriebstemperaturbereich -20°°C bis 50°°C (-4°°F bis 122°°F)
Lagertemperaturbereich -20°°C bis 60°°C, (-4°°F bis 140°°F)
Allgemeine Angaben
Durchschnittliche Übertragung 91,91 %
Gewicht 0,23 kg (0,5 Pfund)
