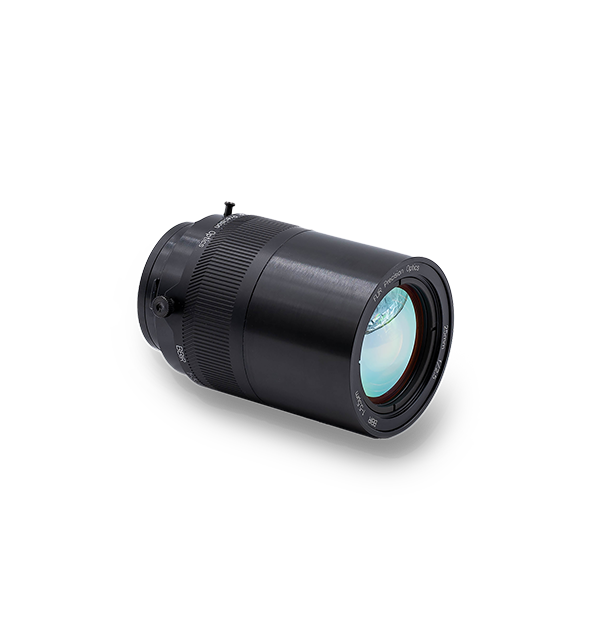

25 mm, 1-5 μm, f/2,5 FPO Breitband-FPO manuelle Bajonettlinse (4218538)

25 mm, 1-5 μm, f/2,5 FPO Breitband-FPO manuelle Bajonettlinse für FLIR F&E/Science Kameras, einschließlich A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR und X85xx MWIR.

Technische Daten

Bildgebung und optische Daten
Brennweite 25 mm
Durchmesser 68 mm (2,69 Zoll)
Fokusbereich 0,2 m bis unendlich
F_number 2.5
Hyperfokale Distanz 11 m/16 m (bei 4,2 µm/3 µm)
Länge 90 mm - 94 mm (3,54 Zoll - 3,69 Zoll)
Spektralband 1 - 5,5 µm
Verzerrung <3 %
Umgebungsfaktoren und Zertifizierungen
Betriebstemperaturbereich -20°°C bis 50°°C (-4°°F bis 122°°F)
Lagertemperaturbereich -20°°C bis 60°°C, (-4°°F bis 140°°F)
Allgemeine Angaben
Durchschnittliche Übertragung 82,91 %
Gewicht 0,61 kg (1,35 lbs)

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
