Extech 341350A-P
Oyster™ Series pH/Conductivity/TDS/ORP/Salinity Meter

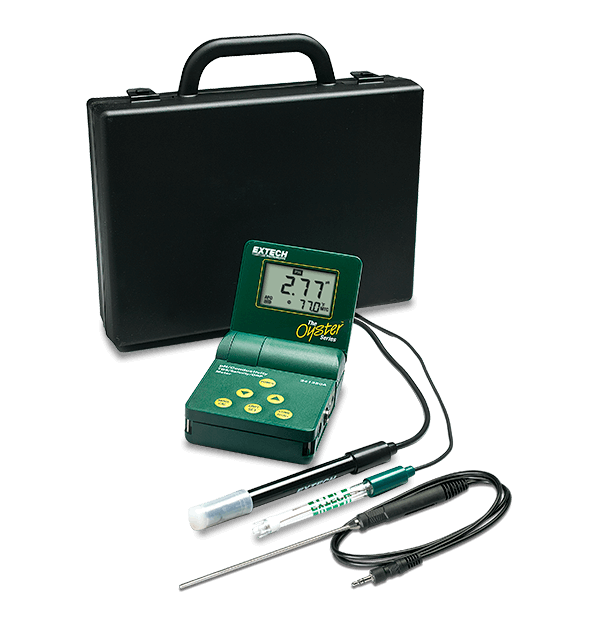

The Extech 341350A-P is an Oyster™ Series pH/Conductivity/TDS/ORP/Salinity Meter with a large LCD built into the adjustable flip-up cover, which is ideal for lab or field use. The microprocessor is based with splash proof housing and a front panel tactile touch pad for slope and calibration adjustments. The memory stores and recalls up to 25 readings. Featuring automatic temperature compensation (ATC) for Conductivity/TDS and manual temperature Compensation for pH. Complete with pH electrode, sample buffers, polymer conductivity cell, thermistor probe, 9 V battery, neck strap, and a carrying case.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Leitfähigkeit | 10 to 19,990µS/cm |
| Leitfähigkeit Grundgenauigkeit | ±2% |
| Leitfähigkeit Max. Auflösung | 0.1µS |
| ORP | -1500mV to 1500mV |
| ORP Grundgenauigkeit | ±3mV |
| ORP Max. Auflösung | 1mV |
| pH | 0.01 to 14.00pH |
| pH Grundgenauigkeit | ±0.02pH |
| pH Max. Auflösung | 0.01pH |
| Salzgehalt | 0 to 10.00ppt |
| Salzgehalt Grundgenauigkeit | ±2%FS |
| Salzgehalt Max. Auflösung | 0.01ppt |
| TDS | 10 to 19,990ppm (mg/L) |
| TDS Grundgenauigkeit | ±2%FS |
| TDS Max. Auflösung | 0.1ppm |
| Temperatur (Kontakt) | Thermistor probe: 32 to 194°F (0 to 90.0°C) |
| Temperatur (Kontakt) Grundgenauigkeit | ±2% |
| Temperatur (Kontakt) Max. Auflösung | 0.1mS |
| Weitere Details | |
|---|---|
| Abmessungen | 3.7 × 4.2 × 2" (96 × 108 × 45mm) |
| Garantie | 2 years |
| Gewicht | 12oz (340g) |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE, NIST |
Resources & Support
User Manual
Extech Oyster Meter 341350-A User Manual
Certification
Extech 341350A Declaration of Conformity
Datasheet
Extech 341350A-P Datasheet
User Manual
Extech Oyster Meter 341350 341350-P User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
