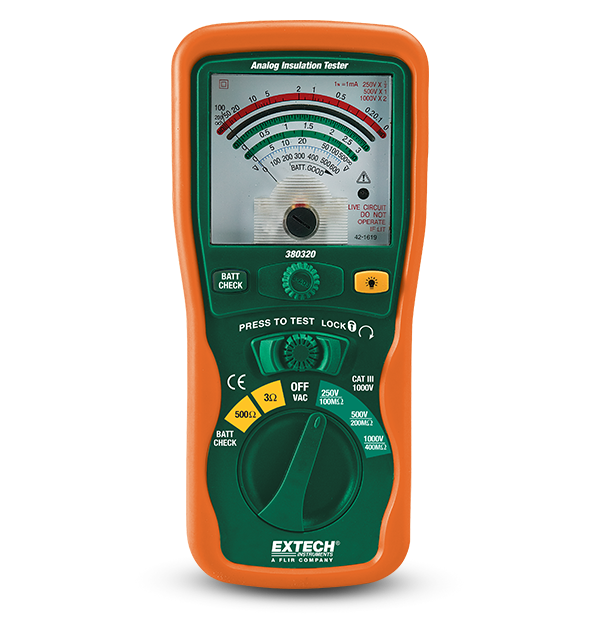

Extech 380320
Analog Insulation Tester
The Extech 380320 is an Analog Insulation Tester with a large, easy to read analog display. It features a live circuit warning which displays the actual AC voltage measurement. It also includes an automatic discharge circuit, lock power on feature for extended test times, and insulation resistance up to 400 MΩ. Complete with heavy duty test leads, alligator clip test lead, 6 AA batteries, hanging strap, and hard carrying case.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Durchgang | 3Ω |
| Isolationsprüfspannung | 250V, 500V, 1000V |
| Isolationswiderstand | 0 to 100MΩ, 0 to 200MΩ, 0 to 400MΩ |
| Isolationswiderstand Grundgenauigkeit | ±5% of scale |
| Kontinuität Grundgenauigkeit | ±3% of scale |
| Wechselspannung | 0 to 600V |
| Wechselspannung Grundgenauigkeit | ±5% of scale |
| Widerstand | 1 to 500Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 7.9 × 3.6 × 2" (200 × 92 × 50mm) |
| Display | Analog |
| Garantie | 2 years |
| Gewicht | 1.2lb (546g) |
| Sicherheitskategorie | CAT III-1000V |
| Stromversorgung | 6 × AA (1.5V) batteries |
| Zertifizierungen | CE |
Resources & Support
User Manual
Extech 380320 Bedienungsanleitung
User Manual
Extech 380320 User Manual GB
User Manual
Extech 380320 User Manual
Certification
Extech 380320 Declaration of Conformity
Datasheet
Extech 380320 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
