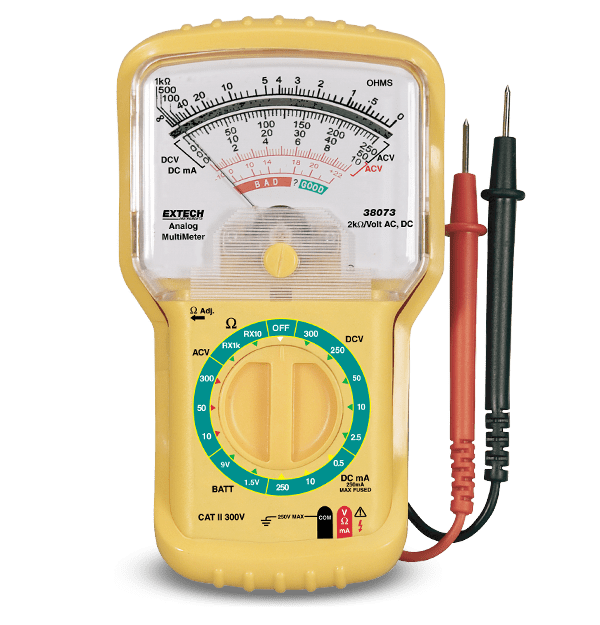

Extech 38073
Mini Analog MultiMeter
Extech’s 38073 Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with protective holster, test leads, and one 1.5 V AA battery.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Batterietest | 1.5V and 9V |
| Dezibel | -10 to 56dB (0dB, 1mW, 600Ω) |
| Gleichspannung | 2.5V, 10V, 50V, 250V, 300V |
| Gleichspannung Grundgenauigkeit | ±5% full scale |
| Gleichstrom Grundgenauigkeit | ±5% full scale |
| Gleichstromstärke | 0.5mA, 10mA, 250mA |
| Wechselspannung | 10V, 50V, 300V |
| Wechselspannung Grundgenauigkeit | ±5% full scale |
| Widerstand | 10kΩ, 1MΩ |
| Weitere Details | |
|---|---|
| Abmessungen | 3.5 × 6.1 × 1.9" (88 × 155 × 49mm) with holster |
| Display | Analog |
| Garantie | 2 years |
| Gewicht | 8.2oz (288g) with holster and test leads |
| Sicherheitskategorie | CAT II-300V |
| Stromversorgung | 1 × AA (1.5V) battery |
| Zertifizierungen | CE |
Resources & Support
User Manual
Extech 38073 User Manual
Certification
Extech 38073 Declaration of Conformity
Datasheet
Extech 38073 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
