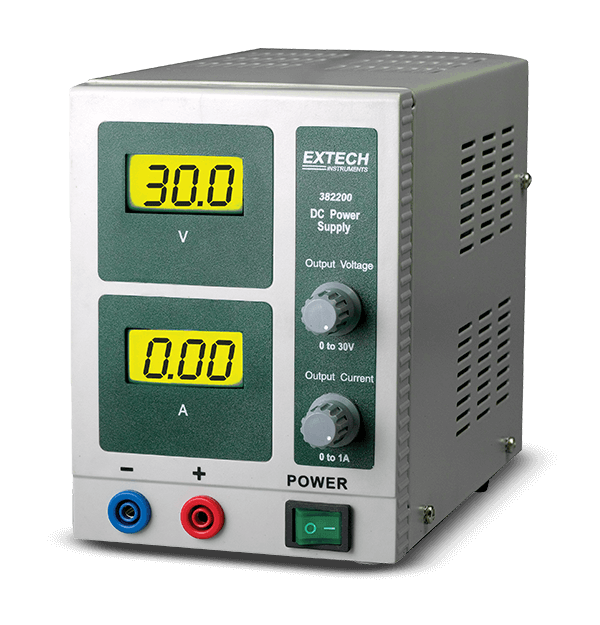

Extech 382200
30 V / 1 A DC-Netzteil mit einem Ausgang
Digitales Konstant-Spannungs/-Strom-Gleichspannungsnetzteil mit Doppel-LCD
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Line Current Regulation | <0,2 % + 3 mA |
| Line Voltage Regulation | <0,01 % + 3 mV |
| Load Current Regulation | <0,2 % + 3 mA |
| Load Voltage Regulation | <0,01 % + 2 mV |
| Output Current | 0–1,00 A DC |
| Output Current Basic Accuracy | ±2 % des Messwerts |
| Output Voltage | 30,0 V DC |
| Output Voltage Basic Accuracy | ±1,5 % des Messwerts |
| Ripple and Noise | <0,5 m / <3 mA |
| Weitere Details | |
|---|---|
| Dimensions | 240 × 108 × 154 mm (9,4 × 4,25 × 6 Zoll) |
| Power | 115 V / 230 V, 50/60 Hz |
| Warranty | 2 Jahre |
| Weight | 2 kg (4,4 lbs) |
Resources & Support
Certification
Extech 382200 Declaration of Conformity
Datasheet
Extech 382200-382202 Datasheet
User Manual
Extech 382200 382202 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
