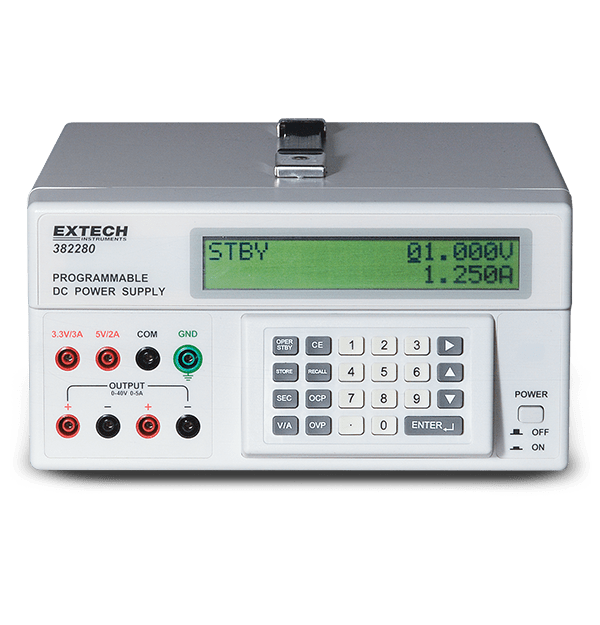

Extech 382280
Precision with Programmable 200 Watt Output DC Power Supply
The Extech 382280 is a Programmable 200 Watt DC Power Supply that has an adjustable 40 V/5 A output, plus two fixed outputs (5 V/2 A and 3.3 V/3 A) and memory for 200 setups. It features high stability with low ripple and noise, 0 to 60 second programmable overload delay timer, selectable constant current/constant voltage, and a bi-directional PC interface that allows setup and read back using virtually any PC communications program.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Ausgangsspannung | 0 to 40V |
| Ausgangsspannung Grundgenauigkeit | 0.05% ± 9mV |
| Ausgangsspannung Max. Auflösung | 1mV |
| Ausgangsstrom | 0 to 5A |
| Ausgangsstrom Grundgenauigkeit | 0.2% ± 9mA |
| Ausgangsstrom Max. Auflösung | 1mA |
| Feste Ausgänge | 5V/2A, 3.3V/3A |
| Restwelligkeit und Rauschen | Voltage (mVrms): 3mV Current (mArms): 3mA |
| Weitere Details | |
|---|---|
| Abmessungen | 12.2 × 9.9 × 5.3" (310 × 250 × 135mm) |
| Garantie | 2 years |
| Gewicht | 8.4lbs (3.8kg) |
| Stromversorgung | 110 or 220VAC, 50/60Hz |
| Zertifizierungen | CE |
Resources & Support
User Manual
Extech 382280 Bedienungsanleitung
User Manual
Extech 382280 User Manual GB
Datasheet
Extech 382280 Datasheet
