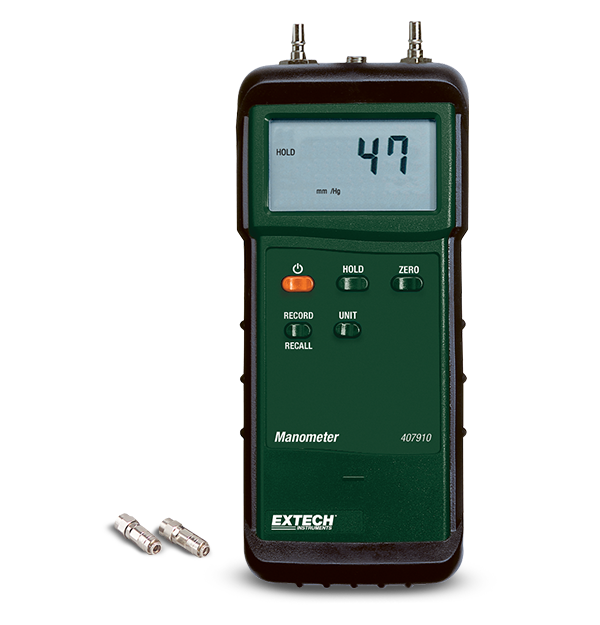

Extech 407910
Hochleistungs-Differenzdruckmanometer (29 psi)
Das 407910 ist ein Differenzdruckmanometer, das bis 29 psi misst und die Ergebnisse in 8 Maßeinheiten anzeigt. Die Funktionen umfassen: Nullfunktion für Offset-Messungen, Min/Max, Data Hold und automatische Abschaltung. Vollständig mit 2 Schnellverschlusskupplungen, 9-V-Batterie, Schutzholster mit Ständer und Tasche.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Pressure [atmosphere] | ±1,974 atm |
| Pressure [atmosphere] Basic Accuracy | ±1 % des vollen Messbereichs |
| Pressure [atmosphere] Max Resolution | 0,001 atm |
| Pressure [inH2O] | ±802,0 ZollH₂O |
| Pressure [inH2O] Basic Accuracy | ±1 % des vollen Messbereichs |
| Pressure [inH2O] Max Resolution | 0,5 ZollH₂O |
| Pressure [inHg] | ±59,05 ZollHg |
| Pressure [inHg] Basic Accuracy | ±1 % des vollen Messbereichs |
| Pressure [inHg] Max Resolution | 0,05 inHg |
| Pressure [kgcm2] | ±2,040 kg/cm² |
| Pressure [kgcm2] Basic Accuracy | ±1 % des vollen Messbereichs |
| Pressure [kgcm2] Max Resolution | 0,001 kg/cm² |
| Pressure [mbar] | ±2000 mbar |
| Pressure [mbar] Basic Accuracy | ±2 % des vollen Messbereichs |
| Pressure [mbar] Max Resolution | 1 mbar |
| Pressure [mH2O] | ±20,40 mH₂O |
| Pressure [mH2O] Basic Accuracy | ±1 % des vollen Messbereichs |
| Pressure [mH2O] Max Resolution | 0,01 mH₂O |
| Pressure [mmHg] | ±1500 mmHg |
| Pressure [mmHg] Basic Accuracy | ±1 % des vollen Messbereichs |
| Pressure [mmHg] Max Resolution | 1 mmHg |
| Pressure [psi] | ±29 psi |
| Pressure [psi] Basic Accuracy | ±1 % des vollen Messbereichs |
| Pressure [psi] Max Resolution | 0,02 psi |
| Weitere Details | |
|---|---|
| Certifications | 407910-NIST_S: CE, NIST 407910_S: CE |
| Dimensions | 178 × 74 × 33 mm |
| Power | 1 9-V-Batterie |
| Warranty | 3 Jahre |
| Weight | 350 g (12 oz) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable
User Manual
Extech 407910 User Manual
Certification
Extech 407910 Declaration of Conformity
Datasheet
Extech 407910 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
