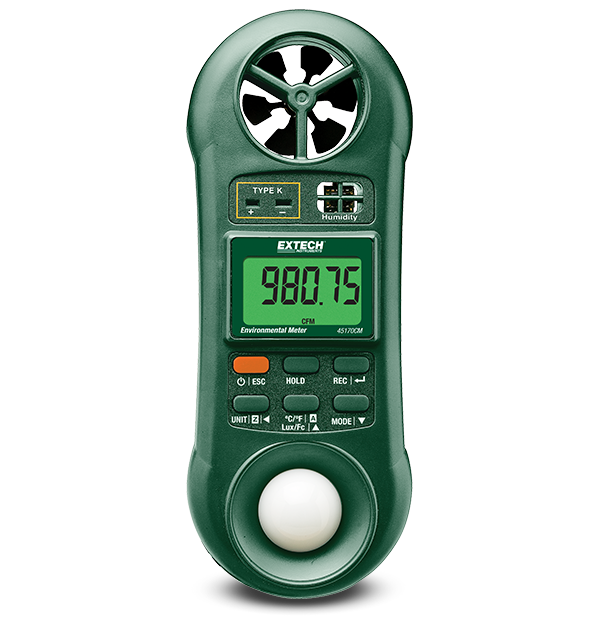

Extech 45170CM
5-in-1 Environmental Meter
The Extech 45170CM is a convenient 5-in-1 Environmental Meter which measures air velocity, air volume, humidity, temperature, and light. It features ergonomic housing design with a large dual smart LCD where characters on display reverse direction depending on the function in use. Other features include data hold, min/max, auto power off functions. This multi-functional meter is ideal for professional or home use in testing the environmental quality in a building. Complete with built-in sensors, wrist strap and a 9 V battery.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Licht (Foot-candle) | 0 to 1860Fc |
| Licht (Foot-candle) Grundgenauigkeit | ±(5% of reading + 8 digits) |
| Licht (Foot-candle) Max. Auflösung | 0.1Fc |
| Licht (Lux) | 0 to 20,000Lux |
| Licht (Lux) Grundgenauigkeit | ±(5% of reading + 8 digits) |
| Licht (Lux) Max. Auflösung | 1Lux |
| Luftgeschwindigkeit (ft/min) | 80 to 5910 ft/min |
| Luftgeschwindigkeit (ft/min) Grundgenauigkeit | ±3% full scale |
| Luftgeschwindigkeit (ft/min) Max. Auflösung | 1ft/min |
| Luftgeschwindigkeit (km/h) | 1.4 to 108km/h |
| Luftgeschwindigkeit (km/h) Grundgenauigkeit | ±3% full scale |
| Luftgeschwindigkeit (km/h) Max. Auflösung | 0.1km/h |
| Luftgeschwindigkeit (Knoten) | 0.8 to 58.3 knots |
| Luftgeschwindigkeit (Knoten) Grundgenauigkeit | ±3% full scale |
| Luftgeschwindigkeit (Knoten) Max. Auflösung | 0.1knots |
| Luftgeschwindigkeit (m/s) | 0.4 to 30m/s |
| Luftgeschwindigkeit (m/s) Grundgenauigkeit | ±3% full scale |
| Luftgeschwindigkeit (m/s) Max. Auflösung | 0.1m/s |
| Luftgeschwindigkeit (mph) | 0.9 to 67MPH |
| Luftgeschwindigkeit (mph) Grundgenauigkeit | ±3% full scale |
| Luftgeschwindigkeit (mph) Max. Auflösung | 0.1MPH |
| Luftvolumen (CFM) | 0.01 to 1,908,400CFM |
| Luftvolumen (CFM) Max. Auflösung | 0.001CFM |
| Luftvolumen (CMM) | 0.001 to 54,000CMM |
| Luftvolumen (CMM) Max. Auflösung | 0.001CMM |
| Relative Feuchtigkeit Max. Auflösung | 0.10% |
| Relative Luftfeuchtigkeit | 10 to 95% |
| Relative Luftfeuchtigkeit Grundgenauigkeit | ±4% |
| Temperatur (Luft) | -148°F to 2372°F (-100°C to 1300°C) |
| Temperatur (Luft) Grundgenauigkeit | ±(1% of reading +2°F/1°C) |
| Temperatur (Luft) Max. Auflösung | 0.1° |
| Temperatur (Typ K) Max. Auflösung | -148°F to 2372°F (-100°C to 1300°C) |
| Temperatur (Typ N) | ±2.5°F (1.2°C) |
| Temperatur (Typ N) Grundgenauigkeit | 0.1° |
| Weitere Details | |
|---|---|
| Abmessungen | 6.1 × 2.4 × 1.3" (156 × 60 × 33mm) |
| Flügelrad | 1.2" (31mm) |
| Garantie | 2 years |
| Gewicht | 5oz (160g) |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE |
