Discontinued

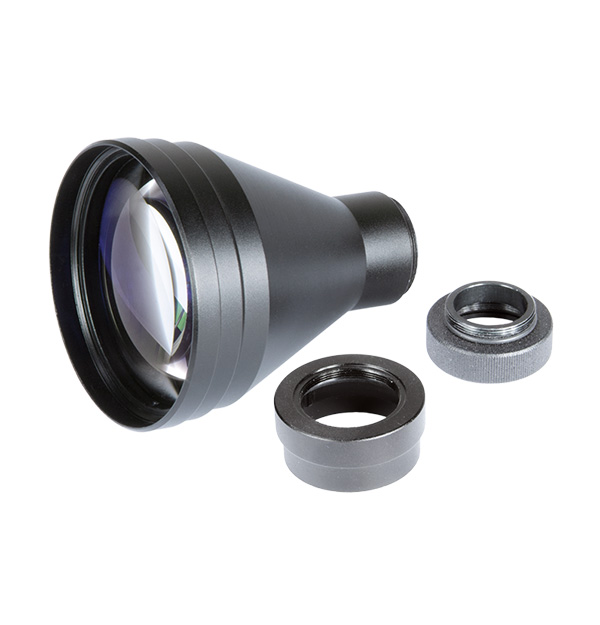

5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14)

Afocal lenses add magnified, long-range performance to standard night vision devices. Quickly installed onto the front of an objective lens, the 5x Afocal Magnifier Lens converts night vision monoculars and goggles into long-range optics. Standard military devices, such as the PVS-7 or PVS-14, require Afocal Adapters #24 or #25 for a secure connection between afocal and objective lenses. The adapters are not compatible with external sacrificial windows.

Technische Daten

Sensor und optische Daten
Auflösung ≤3.65"
Sichtfeld [Winkel] ≥ 7°30'
Vergrößerung 5x
Umgebungsfaktoren und Zulassungen
Lagertemperatur -57°C to +65°C (-70°F to 149°F)
Wassergeschützt 1m / 30 min
Systemübersicht
Lichtdurchlässigkeit [400 bis 900 nm] ≥ 90%
Physikalische Daten
Abmessungen [ohne Deckel] Ø75.5 х 85mm
Gewicht 325 g (0.71 lbs)
