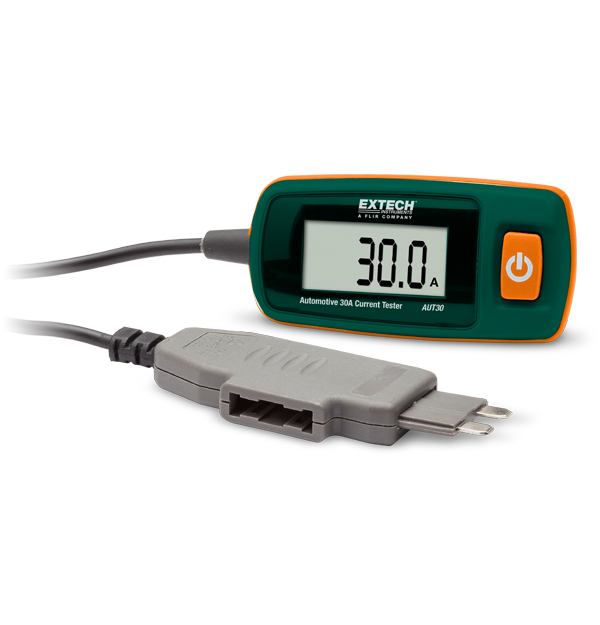

Extech AUT30
30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT30 Current Tester. ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 75 cm (29.5 in) connector cable.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Erkennungsabstand | <0.2" |
| Gleichspannung | 48V DC |
| Gleichstrom Grundgenauigkeit | 10mA |
| Gleichstrom Max. Auflösung | ±(2.0% of reading + 2 digits) |
| Gleichstromstärke | 0 to 30A DC |
| Kabellänge | 71cm (2.3 ft.) |
| Weitere Details | |
|---|---|
| Abmessungen | 159 × 25mm (6.25 × 1") |
| Garantie | 2 years |
| Gewicht | 42g (1.5 oz) |
| Stromversorgung | 1 × A23G (12V) battery |
| Zertifizierungen | CE |
