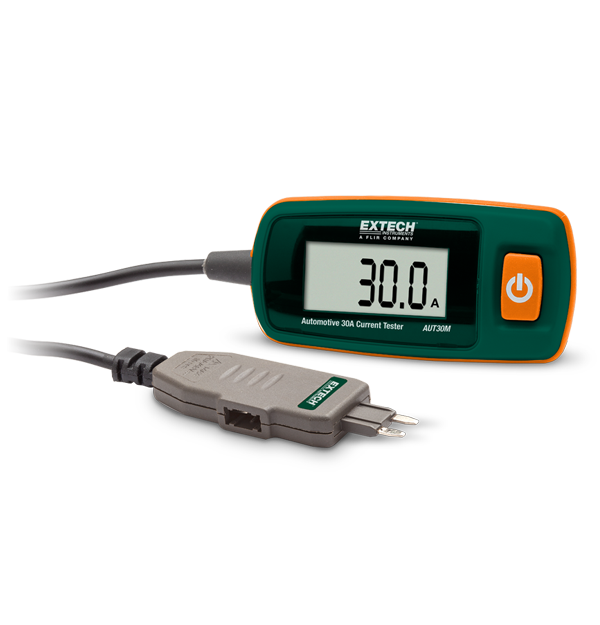

Extech AUT30M
30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT30M Current Tester. Mini-blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 71 cm (28 in) connector cable.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Erkennungsabstand | <0.2" |
| Gleichspannung | 48V DC |
| Gleichstrom Grundgenauigkeit | 10mA |
| Gleichstrom Max. Auflösung | ±(2.0% of reading + 2 digits) |
| Gleichstromstärke | 0 to 30A DC |
| Kabellänge | 71cm (2.3 ft.) |
| Weitere Details | |
|---|---|
| Abmessungen | 159 × 25mm (6.25 × 1") |
| Garantie | 1 year |
| Gewicht | 42g (1.5 oz) |
| Stromversorgung | 1 × A23G (12V) battery |
| Zertifizierungen | CE |
Resources & Support
User Manual
Extech AUT30 AUT30M Bedienungsanleitung
Certification
Extech AUT30M Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
User Manual
Extech AUT30 AUT30M User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
